DAC5686IPZP Texas Instruments - Yeehing Electronics

Dual-Channel, 16-Bit, 500-MSPS, 1x-16x Interpolating Digital-to-Analog Converter (DAC)

Pricing (USD)

Quantity	Unit Price
1 — 99	54.075
100 — 249	48.066
250 — 999	39.513
1,000 +	28.27

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital to Analog Converters - DAC
RoHS	Y
Series	DAC5686
Resolution	16 bit
Sampling Rate	500 MS/s
Number of Channels	2 Channel
Settling Time	12 ns
Interface Type	Parallel
Supply Voltage - Max	3.6 V
Supply Voltage - Min	3 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT

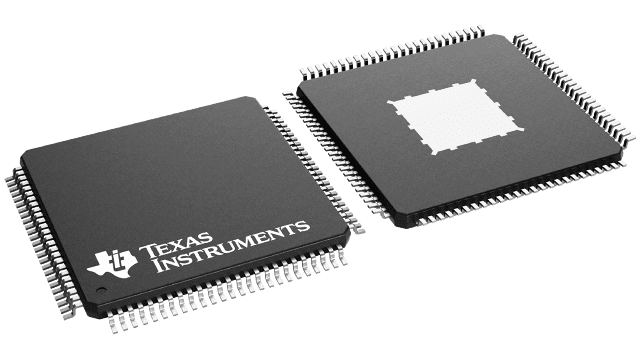

Package / Case	HTQFP-100
Packaging	Tray
Features	High Performance
Height	1 mm
Number of Converters	2 Converter
Power Consumption	445 mW
Architecture	Current Sink
Brand	Texas Instruments
Development Kit	DAC5686EVM
Moisture Sensitive	Yes
Operating Supply Voltage	3.3 V
Product Type	DACs - Digital to Analog Converters
SFDR - Spurious Free Dynamic Range	72 dB
SNR - Signal to Noise Ratio	72 dB
Factory Pack Quantity	90
Subcategory	Data Converter ICs
Unit Weight	0.017827 oz

For more information, please refer to datasheet

Documents

DAC5686IPZP Datasheet

More Information

The DAC5686 is a dual-channel 16-bit high-speed digital-to-analog converter (DAC) with integrated 2×, 4×, 8×, and 16× interpolation filters, a numerically controlled oscillator (NCO), onboard clock multiplier, and on-chip voltage reference. The DAC5686 has been specifically designed to allow for low input data rates between the DAC and ASIC, or FPGA, and high output transmit intermediate frequencies (IF). Target applications include high-speed digital data transmission in wired and wireless communication systems and high-frequency direct-digital synthesis DDS.
