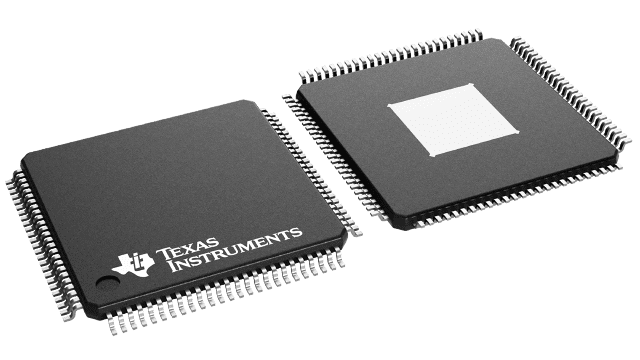

Dual-Channel, 16-Bit, 500-MSPS, 1x-8x Interpolating Digital-to-Analog Converter (DAC)
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 54.007 |
100 — 249 | 48.007 |
250 — 999 | 39.464 |
1,000 + | 24.71 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Digital to Analog Converters - DAC |
RoHS | Y |
Series | DAC5687 |
Resolution | 16 bit |
Sampling Rate | 500 MS/s |
Number of Channels | 2 Channel |
Settling Time | 12 ns |
Interface Type | Parallel |
Supply Voltage - Max | 3.6 V |
Supply Voltage - Min | 3 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | HTQFP-100 |
Packaging | Tray |
Features | High Performance |
Height | 1 mm |
Number of Converters | 2 Converter |
Output Type | Differential |
Power Consumption | 1.41 W |
Architecture | Current Sink |
Brand | Texas Instruments |
Development Kit | DAC5687EVM |
Moisture Sensitive | Yes |
Operating Supply Current | 2 mA |
Operating Supply Voltage | 3.3 V |
Pd - Power Dissipation | 1750 mW |
Product Type | DACs - Digital to Analog Converters |
Reference Voltage | 1.2 V |
SFDR - Spurious Free Dynamic Range | 80 dB |
SNR - Signal to Noise Ratio | 75 dB |
Factory Pack Quantity | 90 |
Subcategory | Data Converter ICs |
Unit Weight | 0.017827 oz |
For more information, please refer to datasheet
Documents
DAC5687IPZP Datasheet |
More Information
The DAC5687 is a dual-channel 16-bit high-speed digital-to-analog converter (DAC) with integrated 2×, 4×, and 8× interpolation filters, a complex numerically controlled oscillator (NCO), onboard clock multiplier, IQ compensation, and on-chip voltage reference. The DAC5687 is pin-compatible to the DAC5686, requiring only changes in register settings for most applications, and offers additional features and superior linearity, noise, crosstalk, and PLL phase noise performance.
