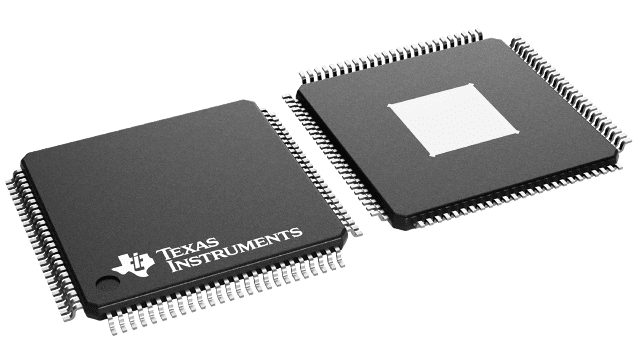

DAC5687MPZPEP Texas Instruments - Yeehing Electronics
Enhanced Product, Dual-Channel, 16-Bit, 500-MSPS, 1x-8x Interpolating Digital-to-Analog Converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 75.475 |
| 100 — 249 | 67.089 |
| 250 — 999 | 55.151 |
| 1,000 + | 34.53 |
The above prices are for reference only.
Specifications
| Manufacturer | Analog Devices Inc. |
| Product Category | Digital to Analog Converters - DAC |
| RoHS | Y |
| Series | LTC1599 |
| Resolution | 16 bit |
| Number of Channels | 1 Channel |
| Settling Time | 1 us |
| Interface Type | Parallel |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 4.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | SSOP-24 |
| Packaging | Tube |
| Height | 2 mm |
| Brand | Analog Devices |
| DNL - Differential Nonlinearity | 0.2 LSB |
| Gain Error | 2 LSB |
| INL - Integral Nonlinearity | 0.25 LSB |
| Operating Supply Current | 10 uA |
| Pd - Power Dissipation | 0.055 mW |
| Product Type | DACs - Digital to Analog Converters |
| Factory Pack Quantity | 59 |
| Subcategory | Data Converter ICs |
For more information, please refer to datasheet
Documents
| DAC5687MPZPEP Datasheet |
More Information
The DAC5687 is a dualchannel 16bit highspeed digitaltoanalog converter (DAC) with integrated 2×, 4×, and 8× interpolation filters, a complex numerically controlled oscillator (NCO), onboard clock multiplier, IQ compensation, and onchip voltage reference. The DAC5687 is pin compatible to the DAC5686, requiring only changes in register settings for most applications, and offers additional features and superior linearity, noise, crosstalk, and phase-locked loop (PLL) noise performance.
