Texas Instruments

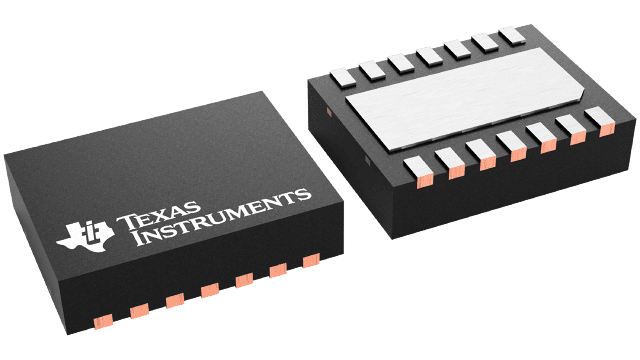

DAC60004IDMDT
DAC60004IDMDT
Regular price
$3.24 USD
Regular price
Sale price
$3.24 USD
Unit price
per
Couldn't load pickup availability
DAC60004IDMDT Texas Instruments - Yeehing Electronics
Ultra-Small, true 12-bit quad voltage output DAC with 1LSB INL/DNL
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.527 |
| 100 — 249 | 6.951 |
| 250 — 999 | 5.463 |
| 1,000 + | 3.24 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital to Analog Converters - DAC |
| RoHS | Y |
| Series | DAC60004 |
| Resolution | 12 bit |
| Sampling Rate | - |
| Number of Channels | 4 Channel |
| Settling Time | 5.8 us |
| Interface Type | Serial, 3-Wire, SPI |
| Reference Type | External |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.7 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VSON-14 |
| Packaging | Reel |
| Features | Reset to Mid-Scale, SDO, Small Size |
| Input Type | Analog, Digital |
| Number of Converters | 4 Converter |
| Output Type | Buffer, Rail to Rail |
| Power Consumption | 20 mW |
| Product | Digital to Analog Converters |
| Type | Precision |
| Architecture | R-2R |
| Brand | Texas Instruments |
| Shutdown | No Shutdown |
| DNL - Differential Nonlinearity | 1 LSB |
| Gain Error | 0.05 % FSR |
| INL - Integral Nonlinearity | 1 LSB |
| Operating Supply Current | 4 mA |
| Pd - Power Dissipation | 20 mW |
| Product Type | DACs - Digital to Analog Converters |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| THD - Total Harmonic Distortion | - 80 dB |
| Unit Weight | 0.001069 oz |
For more information, please refer to datasheet
Documents
| DAC60004IDMDT Datasheet |
More Information
The DAC80004/70004/60004 (DACx0004) are highly accurate, low-power, voltage-output, quad-channel, 16-, 14-, 12-bit digital-to-analog converters (DACs) respectively. The DACx0004 devices are ensured monotonic by design and offer excellent linearity of less than 1 LSB (Max). The reference input of the DAC is buffered internally using a dedicated reference buffer.
