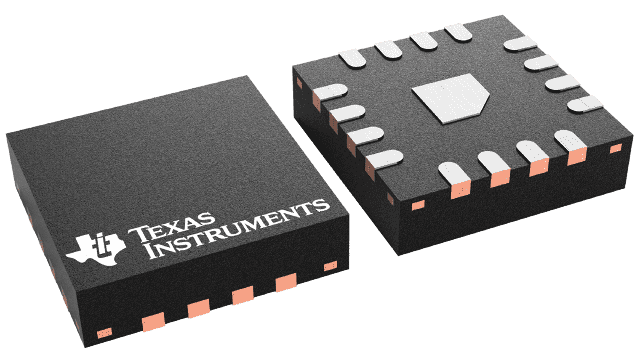

DAC60508ZCRTER Texas Instruments - Yeehing Electronics
True 12-Bit, 8-channel, SPI, Vout DAC in tiny WCSP package with precision internal reference
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 12.54 |
100 — 249 | 10.223 |
250 — 999 | 8.035 |
1,000 + | 5.45 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Digital to Analog Converters - DAC |
RoHS | Y |
Series | DAC60508 |
Resolution | 12 bit |
Number of Channels | 8 Channel |
Settling Time | 5 us |
Interface Type | SPI |
Reference Type | External, Internal |
Supply Voltage - Max | 5.5 V |
Supply Voltage - Min | 2.7 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Mounting Style | SMD/SMT |
Package / Case | WQFN-16 |
Packaging | Reel |
Features | Reset to Mid-Scale, Small Size |
Number of Converters | 8 Converter |
Power Consumption | 33 mW |
Type | Low Power |
Brand | Texas Instruments |
Shutdown | No Shutdown |
DNL - Differential Nonlinearity | 1 LSB |
Gain Error | 0.14 % FSR |
INL - Integral Nonlinearity | 1 LSB |
Moisture Sensitive | Yes |
Operating Supply Current | 5 mA |
Product Type | DACs - Digital to Analog Converters |
Reference Voltage | 2.5 V |
Factory Pack Quantity | 3000 |
Subcategory | Data Converter ICs |
For more information, please refer to datasheet
Documents
DAC60508ZCRTER Datasheet |
More Information
The DACx0508 is a pin-compatible family of low power, eight-channel, buffered voltage-output, digital-to-analog converters (DACs) with 16-, 14- and 12-bit resolution. The DACx0508 includes a 2.5-V, 5-ppm/°C internal reference, eliminating the need for an external precision reference in most applications. A user selectable gain configuration provides full-scale output voltages of 1.25 V (gain = ½), 2.5 V (gain = 1) or 5 V (gain = 2). The device operates from a single 2.7-V to 5.5-V supply, is specified monotonic and provides high linearity of ±1 LSB INL.
