DAC60508ZYZFR Texas Instruments - Yeehing Electronics

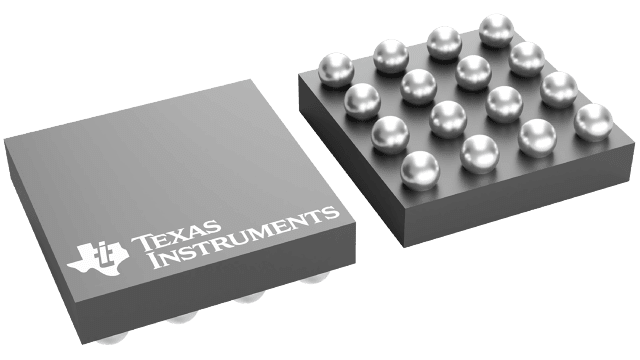

True 12-Bit, 8-channel, SPI, Vout DAC in tiny WCSP package with precision internal reference
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 12.54 |
| 100 — 249 | 10.223 |
| 250 — 999 | 8.035 |
| 1,000 + | 3.77 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| DAC60508ZYZFR Datasheet |
More Information
The DACx0508 is a pin-compatible family of low power, eight-channel, buffered voltage-output, digital-to-analog converters (DACs) with 16-, 14- and 12-bit resolution. The DACx0508 includes a 2.5-V, 5-ppm/°C internal reference, eliminating the need for an external precision reference in most applications. A user selectable gain configuration provides full-scale output voltages of 1.25 V (gain = ½), 2.5 V (gain = 1) or 5 V (gain = 2). The device operates from a single 2.7-V to 5.5-V supply, is specified monotonic and provides high linearity of ±1 LSB INL.
