Texas Instruments
DAC60508ZYZFT
DAC60508ZYZFT
Regular price
$5.72 USD
Regular price
Sale price
$5.72 USD
Unit price
per
Couldn't load pickup availability
DAC60508ZYZFT Texas Instruments - Yeehing Electronics
True 12-Bit, 8-channel, SPI, Vout DAC in tiny WCSP package with precision internal reference
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 15.048 |
| 100 — 249 | 12.267 |
| 250 — 999 | 9.642 |
| 1,000 + | 5.72 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital to Analog Converters - DAC |
| RoHS | Y |
| Series | DAC60508Z |
| Resolution | 12 bit |
| Number of Channels | 8 Channel |
| Settling Time | 5 us |
| Interface Type | SPI |
| Reference Type | Internal |
| Supply Voltage - Max | 5 V |
| Supply Voltage - Min | 2.7 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |

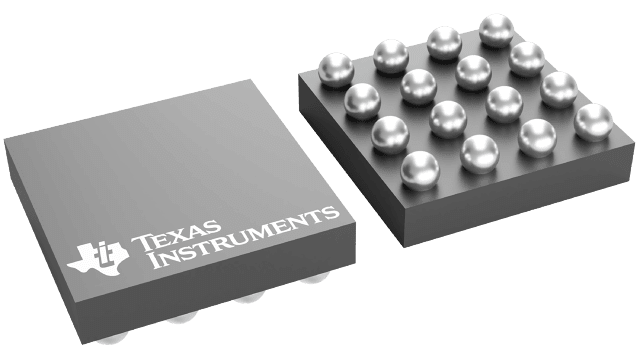

| Package / Case | DSBGA-16 |
| Packaging | Reel |
| Features | Reset to Mid-Scale, Small Size |
| Number of Converters | 1 Converter |
| Output Type | Buffered Voltage |
| Power Consumption | 33 mW |
| Type | Low Power |
| Architecture | R-2R |
| Brand | Texas Instruments |
| Shutdown | No Shutdown |
| DNL - Differential Nonlinearity | 0.5 LSB |
| Gain Error | 0.14 % FSR |
| INL - Integral Nonlinearity | 0.5 LSB |
| Operating Supply Current | 5 mA |
| Product Type | DACs - Digital to Analog Converters |
| Reference Voltage | 2.5 V |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.000208 oz |
For more information, please refer to datasheet
Documents
| DAC60508ZYZFT Datasheet |
More Information
The DACx0508 is a pin-compatible family of low power, eight-channel, buffered voltage-output, digital-to-analog converters (DACs) with 16-, 14- and 12-bit resolution. The DACx0508 includes a 2.5-V, 5-ppm/°C internal reference, eliminating the need for an external precision reference in most applications. A user selectable gain configuration provides full-scale output voltages of 1.25 V (gain = ½), 2.5 V (gain = 1) or 5 V (gain = 2). The device operates from a single 2.7-V to 5.5-V supply, is specified monotonic and provides high linearity of ±1 LSB INL.
