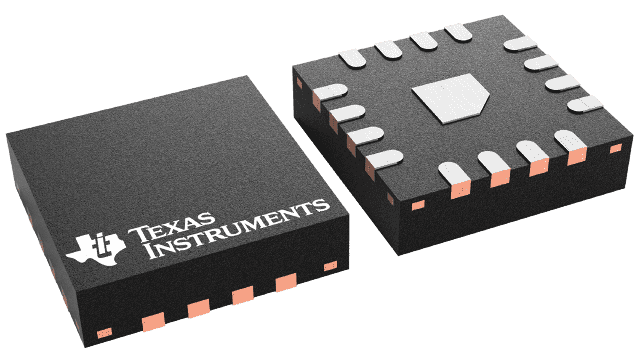

DAC70504RTET Texas Instruments - Yeehing Electronics
True 14-Bit, 4-channel, SPI, Vout DAC in tiny QFN package with precision internal reference
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 12.513 |
| 100 — 249 | 10.93 |
| 250 — 999 | 8.427 |
| 1,000 + | 5.28 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital to Analog Converters - DAC |
| RoHS | Y |
| Series | DAC70504 |
| Resolution | 14 bit |
| Number of Channels | 4 Channel |
| Settling Time | 5 us |
| Interface Type | SPI |
| Reference Type | Internal |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.7 V, 2.7 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-16 |
| Packaging | Reel |
| Features | Reset to Mid-Scale, Small Size |
| Number of Converters | 4 Converter |
| Output Type | Voltage Buffered |
| Power Consumption | 17 mW |
| Type | Buffered Voltage |
| Architecture | R-2R |
| Brand | Texas Instruments |
| Shutdown | No Shutdown |
| Development Kit | DAC70504EVM |
| DNL - Differential Nonlinearity | +/- 0.5 LSB |
| Gain Error | 0.14 % FSR |
| INL - Integral Nonlinearity | +/- 0.5 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Current | 2.8 mA |
| Product Type | DACs - Digital to Analog Converters |
| Reference Voltage | 1.25 V to 5.5 V |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.000561 oz |
For more information, please refer to datasheet
Documents
| DAC70504RTET Datasheet |
More Information
The DAC80504, DAC70504, and DAC60504 (DACx0504) are a pin-compatible family of low-power, four-channel, buffered voltage-output, digital-to-analog converters (DACs) with 16-, 14-, and 12-bit resolution. The DACx0504 includes a low drift, 2.5-V internal reference, eliminating the need for an external precision reference in most applications. A user-selectable gain configuration provides full-scale output voltages of 1.25 V (gain = ½), 2.5 V (gain = 1), or 5 V (gain = 2). These devices operate from a single 2.7-V to 5.5-V supply, are specified monotonic, and provide high linearity of ±1 LSB INL.
