Texas Instruments
DAC71416RHAR
DAC71416RHAR
Regular price
$20.29 USD
Regular price
Sale price
$20.29 USD
Unit price
per
Couldn't load pickup availability

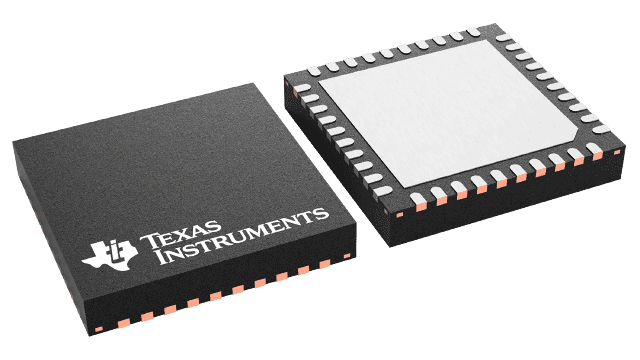

DAC71416RHAR Texas Instruments - Yeehing Electronics
16-channel 14-bit high-voltage output DAC with integrated internal reference
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 44.355 |
| 100 — 249 | 39.426 |
| 250 — 999 | 32.411 |
| 1,000 + | 20.29 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital to Analog Converters - DAC |
| RoHS | Y |
| Series | DAC71416 |
| Resolution | 14 bit |
| Sampling Rate | - |
| Number of Channels | 16 Channel |
| Settling Time | 12 us |
| Interface Type | SPI |
| Reference Type | Internal |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.7 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-40 |
| Packaging | Reel |
| Features | Integrated Temp Sensor |
| Output Type | Buffered Voltage |
| Type | High Voltage Output DAC |
| Architecture | R-2R |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| DNL - Differential Nonlinearity | 1 LSB |
| Gain Error | 0.02 %FSR |
| INL - Integral Nonlinearity | 1 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Current | 10 mA |
| Product Type | DACs - Digital to Analog Converters |
| Reference Voltage | 2.5 V |
| Factory Pack Quantity | 2500 |
| Subcategory | Data Converter ICs |
For more information, please refer to datasheet
Documents
| DAC71416RHAR Datasheet |
More Information
The DAC81416, DAC71416, and DAC61416 (DACx1416) are a pin-compatible family of 16‑channel, buffered, high-voltage output digital-to-analog converters (DACs) with 16‑bit, 14‑bit, and 12‑bit resolution. The DACx1416 include a low-drift, 2.5‑V internal reference, eliminating the need for an external precision reference in most applications. These devices are specified monotonic and provide high linearity of ±1 LSB INL.
