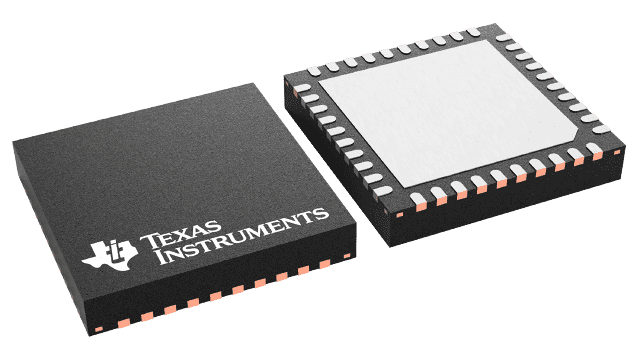

DAC71416RHAT Texas Instruments - Yeehing Electronics
16-channel 14-bit high-voltage output DAC with integrated internal reference
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 47.415 |
| 100 — 249 | 42.146 |
| 250 — 999 | 34.647 |
| 1,000 + | 21.69 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| DAC71416RHAT Datasheet |
More Information
The DAC81416, DAC71416, and DAC61416 (DACx1416) are a pin-compatible family of 16‑channel, buffered, high-voltage output digital-to-analog converters (DACs) with 16‑bit, 14‑bit, and 12‑bit resolution. The DACx1416 include a low-drift, 2.5‑V internal reference, eliminating the need for an external precision reference in most applications. These devices are specified monotonic and provide high linearity of ±1 LSB INL.
