Texas Instruments
DAC7551IDRNR
DAC7551IDRNR
Regular price
$1.05 USD
Regular price
Sale price
$1.05 USD
Unit price
per
Couldn't load pickup availability

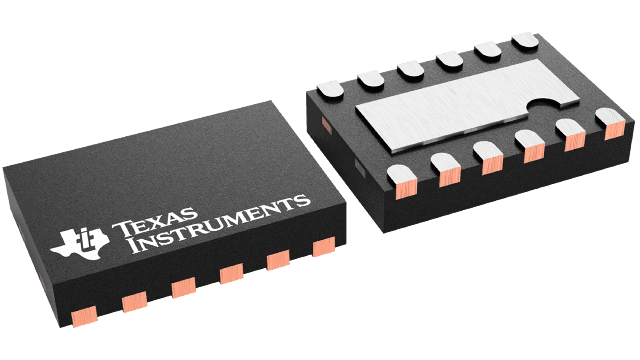

DAC7551IDRNR Texas Instruments - Yeehing Electronics
12-Bit, Ultralow Glitch, Voltage Output Digital to Analog Converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.03 |
| 100 — 249 | 2.655 |
| 250 — 999 | 1.862 |
| 1,000 + | 1.05 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital to Analog Converters - DAC |
| RoHS | Y |
| Series | DAC7551 |
| Resolution | 12 bit |
| Sampling Rate | 500 kS/s |
| Number of Channels | 1 Channel |
| Interface Type | Serial, 3-Wire, SPI |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.7 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Mounting Style | SMD/SMT |
| Package / Case | USON-12 |
| Packaging | Reel |
| Features | Low Power, SDO |
| Height | 0.75 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 0.27 mW |
| Architecture | Resistor-String |
| Brand | Texas Instruments |
| Gain Error | 0.15 % FSR |
| Operating Supply Voltage | 3.3 V, 5 V |
| Product Type | DACs - Digital to Analog Converters |
| Factory Pack Quantity | 3000 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.000575 oz |
For more information, please refer to datasheet
Documents
| DAC7551IDRNR Datasheet |
More Information
The DAC7551 is a single-channel, voltage-output digital-to-analog converter (DAC) with exceptional linearity and monotonicity, and a proprietary architecture that minimizes glitch energy. The low-power DAC7551 operates from a single 2.7V to 5.5V supply. The DAC7551 output amplifiers can drive a 2k, 200pF load rail-to-rail with 5µs settling time; the output range is set using an external voltage reference.
