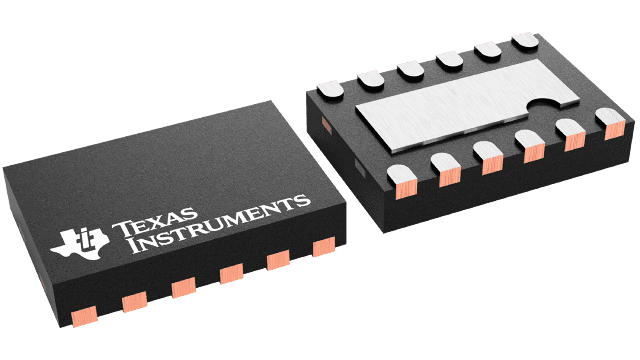

DAC7551IDRNT Texas Instruments - Yeehing Electronics

12-Bit, Ultralow Glitch, Voltage Output Digital to Analog Converter

Pricing (USD)

Quantity	Unit Price
1 — 99	3.636
100 — 249	3.186
250 — 999	2.234
1,000 +	1.26

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital to Analog Converters - DAC
RoHS	Y
Series	DAC7551
Resolution	12 bit
Sampling Rate	500 kS/s
Number of Channels	1 Channel
Interface Type	Serial, 3-Wire, SPI
Supply Voltage - Max	5.5 V
Supply Voltage - Min	2.7 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Mounting Style	SMD/SMT
Package / Case	USON-12
Packaging	Reel
Features	Low Power, SDO
Height	0.75 mm
Number of Converters	1 Converter
Power Consumption	0.27 mW
Architecture	Resistor-String
Brand	Texas Instruments
Gain Error	0.15 % FSR
Operating Supply Voltage	3.3 V, 5 V
Product Type	DACs - Digital to Analog Converters
Factory Pack Quantity	250
Subcategory	Data Converter ICs
Unit Weight	0.000575 oz

For more information, please refer to datasheet

Documents

DAC7551IDRNT Datasheet

More Information

The DAC7551 is a single-channel, voltage-output digital-to-analog converter (DAC) with exceptional linearity and monotonicity, and a proprietary architecture that minimizes glitch energy. The low-power DAC7551 operates from a single 2.7V to 5.5V supply. The DAC7551 output amplifiers can drive a 2k, 200pF load rail-to-rail with 5µs settling time; the output range is set using an external voltage reference.
