Texas Instruments
DAC7551ZTDRNRQ1
DAC7551ZTDRNRQ1
Regular price
$1.27 USD
Regular price
Sale price
$1.27 USD
Unit price
per
Couldn't load pickup availability

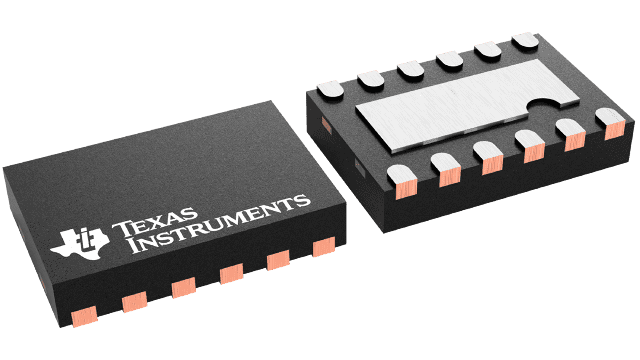

DAC7551ZTDRNRQ1 Texas Instruments - Yeehing Electronics
Automotive 12-Bit, Ultralow Glitch, Voltage Output Digital to Analog Converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.656 |
| 100 — 249 | 3.204 |
| 250 — 999 | 2.246 |
| 1,000 + | 1.27 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | -40 |
| Maximum Operating Temperature | 105 |
| Factory Pack Quantity | 3,000 |
| Package | Pins | USON (DRN) | 12 |
For more information, please refer to datasheet
Documents
| DAC7551ZTDRNRQ1 Datasheet |
More Information
The DAC7551-Q1 device is a single-channel, voltage-output digital-to-analog converter (DAC) with exceptional linearity and monotonicity, and a proprietary architecture that minimizes glitch energy. The low-power DAC7551-Q1 device operates from a single 2.7- to 5.5-V supply. The DAC7551-Q1 output amplifiers can drive a 2-kΩ, 200-pF load rail-to-rail with 5-µs settling time. The output range is set using an external voltage reference.
