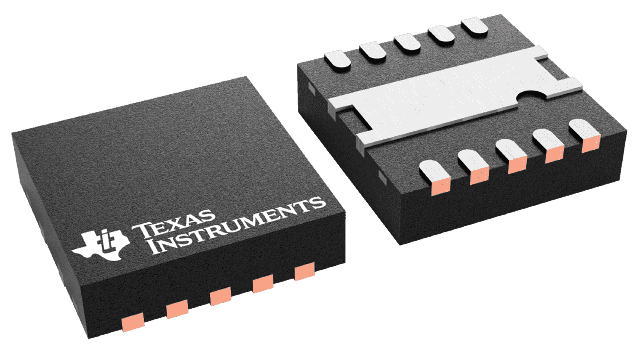

DAC7562SDSCR Texas Instruments - Yeehing Electronics

12-Bit, Dual, Low Power, Ultra-low Glitch, Buffered Voltage Output DAC with 2.5V, 4ppm/°C Reference

Pricing (USD)

Quantity	Unit Price
1 — 99	4.81
100 — 249	3.921
250 — 999	3.082
1,000 +	1.83

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital to Analog Converters - DAC
RoHS	Y
Series	DAC7562
Resolution	12 bit
Sampling Rate	-
Number of Channels	2 Channel
Settling Time	10 us
Interface Type	Serial, 3-Wire
Reference Type	External, Internal
Supply Voltage - Max	5.5 V
Supply Voltage - Min	2.7 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	WSON-10
Packaging	Reel
Features	Low Power, Small Size
Number of Converters	2 Converter
Output Type	Buffer, Voltage
Power Consumption	0.5 mW
Type	Precision
Brand	Texas Instruments
Gain Error	0.15 % FSR
Moisture Sensitive	Yes
Product Type	DACs - Digital to Analog Converters
Reference Voltage	2.5 V
Factory Pack Quantity	3000
Subcategory	Data Converter ICs
Unit Weight	0.000646 oz

For more information, please refer to datasheet

Documents

DAC7562SDSCR Datasheet

More Information

The DAC756x, DAC816x, and DAC856x devices are low-power, voltage-output, dual-channel, 16-, 14-, and 12-bit digital-to-analog converters (DACs), respectively. These devices include a 2.5-V, 4-ppm/°C internal reference, giving a full-scale output voltage range of 2.5 V or 5 V. The internal reference has an initial accuracy of ±5 mV and can source or sink up to 20 mA at the VREFIN/VREFOUT pin.
