Texas Instruments
DAC7563TDSCR
DAC7563TDSCR
Regular price
$1.69 USD
Regular price
Sale price
$1.69 USD
Unit price
per
Couldn't load pickup availability

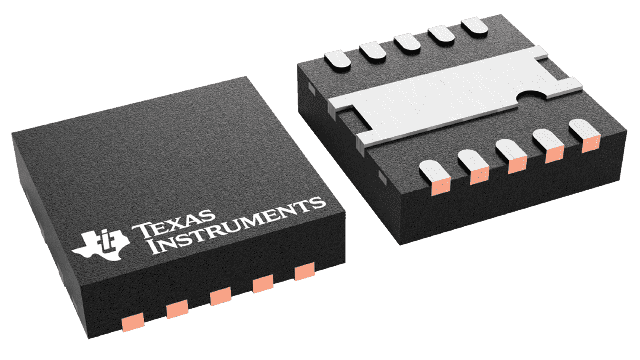

DAC7563TDSCR Texas Instruments - Yeehing Electronics
DAC7563T Dual,12-Bit,Low Power with 2.5-V,4ppm/C Internal Ref,Reset to Mid-scale and 5V TTL I/O
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.453 |
| 100 — 249 | 3.63 |
| 250 — 999 | 2.853 |
| 1,000 + | 1.69 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | -40 |
| Maximum Operating Temperature | 125 |
| Factory Pack Quantity | 3,000 |
| Package | Pins | WSON (DSC) | 10 |
For more information, please refer to datasheet
Documents
| DAC7563TDSCR Datasheet |
More Information
The DAC856xT, DAC816xT, and DAC756xT devices are low-power, voltage-output, dual-channel, 16-, 14-, and 12-bit digital-to-analog converters (DACs), respectively. These devices include a 2.5-V, 4-ppm/°C internal reference, giving a full-scale output voltage range of 2.5 V or 5 V. The internal reference has an initial accuracy of ±5 mV and can source or sink up to 20 mA at the VREFIN/VREFOUT pin.
