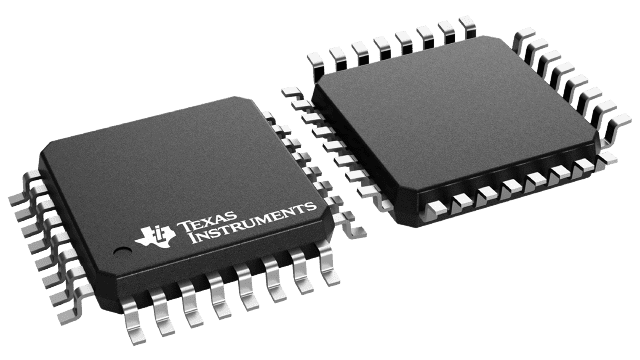

DAC7632VFR Texas Instruments - Yeehing Electronics
16-Bit, Dual Voltage Output DAC with Serial Interface
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 16.793 |
| 100 — 249 | 14.668 |
| 250 — 999 | 11.31 |
| 1,000 + | 7.08 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital to Analog Converters - DAC |
| RoHS | Y |
| Series | DAC7632 |
| Resolution | 16 bit |
| Sampling Rate | 89 kS/s |
| Number of Channels | 2 Channel |
| Settling Time | 10 us |
| Interface Type | Serial |
| Supply Voltage - Max | 5.25 V |
| Supply Voltage - Min | 4.75 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | LQFP-32 |
| Packaging | Reel |
| Features | Reset to Mid-Scale, SDO |
| Height | 1.4 mm |
| Number of Converters | 2 Converter |
| Power Consumption | 2.5 mW |
| Type | Precision |
| Architecture | R-2R |
| Brand | Texas Instruments |
| Gain Error | 0.12 % FSR |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 5 V |
| Product Type | DACs - Digital to Analog Converters |
| Factory Pack Quantity | 1000 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.005993 oz |
For more information, please refer to datasheet
Documents
| DAC7632VFR Datasheet |
More Information
The DAC7632 is a 16-bit, dual channel, voltage output, Digital-to-Analog Converter (DAC) which provides 15-bit monotonic performance over the specified temperature range. The device accepts 24-bit serial input data, has double-buffered DAC input logic (allowing simultaneous update of both DACs), and provides a serial data output for daisy-chaining multiple devices. A programmable asynchronous reset clears all registers to a mid-scale code of 8000H or to a zero-scale code of 0000H. The DAC7632 can operate from a single +5V supply or from +5V and 5V supplies, providing an output range of 0V to +2.5V or 2.5V to +2.5V, respectively.
