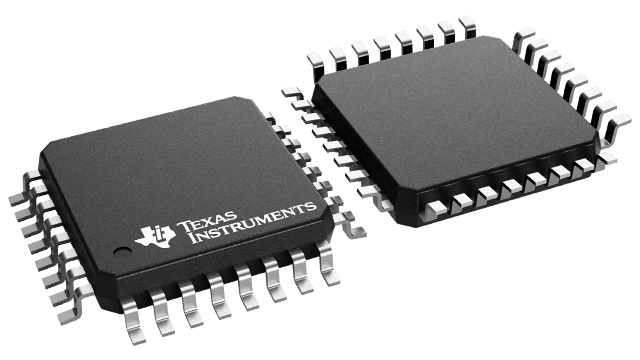

DAC7632VFT Texas Instruments - Yeehing Electronics

16-Bit, Dual Voltage Output DAC with Serial Interface

Pricing (USD)

Quantity	Unit Price
1 — 99	20.113
100 — 249	17.568
250 — 999	13.546
1,000 +	8.48

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

DAC7632VFT Datasheet

More Information

The DAC7632 is a 16-bit, dual channel, voltage output, Digital-to-Analog Converter (DAC) which provides 15-bit monotonic performance over the specified temperature range. The device accepts 24-bit serial input data, has double-buffered DAC input logic (allowing simultaneous update of both DACs), and provides a serial data output for daisy-chaining multiple devices. A programmable asynchronous reset clears all registers to a mid-scale code of 8000H or to a zero-scale code of 0000H. The DAC7632 can operate from a single +5V supply or from +5V and –5V supplies, providing an output range of 0V to +2.5V or –2.5V to +2.5V, respectively.
