DAC7724NB Texas Instruments - Yeehing Electronics

12-bit quad voltage output DAC with reset to mid-scale

Pricing (USD)

Quantity	Unit Price
1 — 99	35.463
100 — 249	30.976
250 — 999	23.884
1,000 +	17.09

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital to Analog Converters - DAC
RoHS	Y
Series	DAC7724
Resolution	12 bit
Sampling Rate	100 kS/s
Number of Channels	4 Channel
Settling Time	10 us
Interface Type	Parallel
Supply Voltage - Max	15.75 V
Supply Voltage - Min	14.25 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT

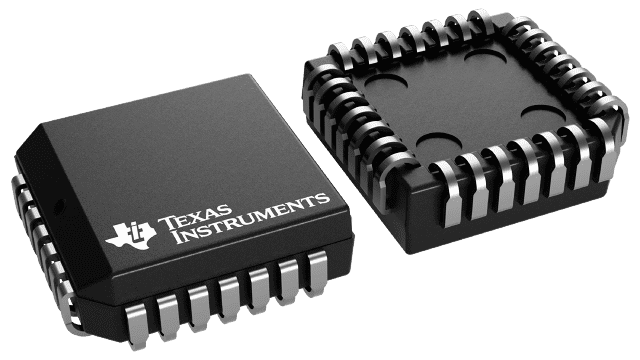

Package / Case	PLCC-28
Packaging	Tube
Features	Reset to Mid-Scale
Height	4.06 mm
Number of Converters	4 Converter
Power Consumption	45 mW
Type	Precision
Architecture	R-2R
Brand	Texas Instruments
Gain Error	0.05 % FSR
Moisture Sensitive	Yes
Operating Supply Voltage	15 V
Product Type	DACs - Digital to Analog Converters
Factory Pack Quantity	37
Subcategory	Data Converter ICs
Unit Weight	0.041719 oz

For more information, please refer to datasheet

Documents

DAC7724NB Datasheet

More Information

The DAC7724 and DAC7725 are 12-bit quad voltage output digital-to-analog converters with guaranteed 12-bit monotonic performance over the specified temperature range. They accept 12-bit parallel input data, have double-buffered DAC input logic (allowing simultaneous update of all DACs), and provide a readback mode of the internal input registers. An asynchronous reset clears all registers to a mid-scale code of 800H (DAC7724) or to a zero-scale of 000H (DAC7725). The DAC7724 and DAC7725 can operate from a single +15V supply, or from +15V and –15V supplies.
