Texas Instruments

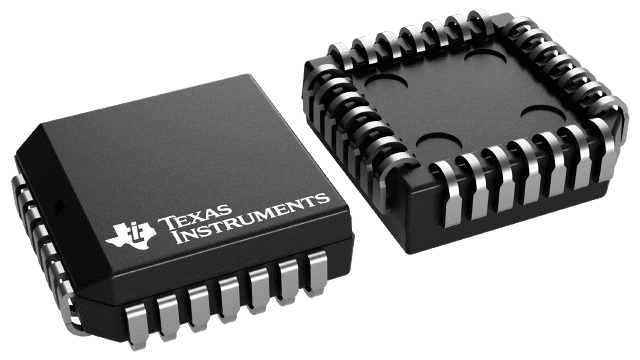

DAC7724NB/750
DAC7724NB/750
Regular price
$13.55 USD
Regular price
Sale price
$13.55 USD
Unit price
per
Couldn't load pickup availability
DAC7724NB/750 Texas Instruments - Yeehing Electronics
12-bit quad voltage output DAC with reset to mid-scale
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 32.143 |
| 100 — 249 | 28.076 |
| 250 — 999 | 21.648 |
| 1,000 + | 13.55 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | -40 |
| Maximum Operating Temperature | 85 |
| Factory Pack Quantity | 750 |
| Package | Pins | PLCC (FN) | 28 |
For more information, please refer to datasheet
Documents
| DAC7724NB/750 Datasheet |
More Information
The DAC7724 and DAC7725 are 12-bit quad voltage output digital-to-analog converters with guaranteed 12-bit monotonic performance over the specified temperature range. They accept 12-bit parallel input data, have double-buffered DAC input logic (allowing simultaneous update of all DACs), and provide a readback mode of the internal input registers. An asynchronous reset clears all registers to a mid-scale code of 800H (DAC7724) or to a zero-scale of 000H (DAC7725). The DAC7724 and DAC7725 can operate from a single +15V supply, or from +15V and 15V supplies.
