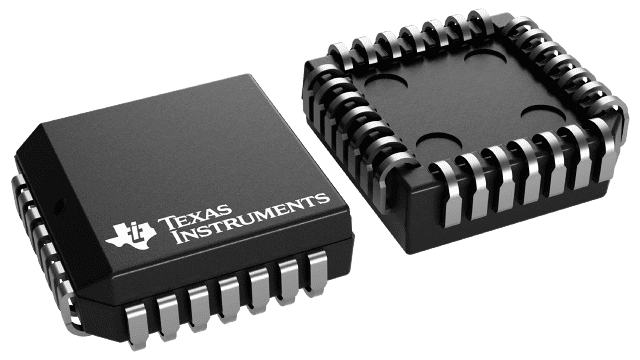

DAC7725NB/750 Texas Instruments - Yeehing Electronics
12-bit quad voltage output DAC with reset to zero-scale
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 32.369 |
| 100 — 249 | 28.772 |
| 250 — 999 | 23.652 |
| 1,000 + | 14.81 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital to Analog Converters - DAC |
| RoHS | Y |
| Series | DAC7725 |
| Resolution | 12 bit |
| Sampling Rate | 100 kS/s |
| Number of Channels | 4 Channel |
| Settling Time | 10 us |
| Interface Type | Parallel |
| Supply Voltage - Max | 15.75 V |
| Supply Voltage - Min | 14.25 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | PLCC-28 |
| Packaging | Reel |
| Height | 4.06 mm |
| Number of Converters | 4 Converter |
| Output Type | Parallel |
| Power Consumption | 45 mW |
| Type | Precision |
| Architecture | R-2R |
| Brand | Texas Instruments |
| Gain Error | 0.05 % FSR |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 15 V |
| Product Type | DACs - Digital to Analog Converters |
| Factory Pack Quantity | 750 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.041719 oz |
For more information, please refer to datasheet
Documents
| DAC7725NB/750 Datasheet |
More Information
The DAC7724 and DAC7725 are 12-bit quad voltage output digital-to-analog converters with guaranteed 12-bit monotonic performance over the specified temperature range. They accept 12-bit parallel input data, have double-buffered DAC input logic (allowing simultaneous update of all DACs), and provide a readback mode of the internal input registers. An asynchronous reset clears all registers to a mid-scale code of 800H (DAC7724) or to a zero-scale of 000H (DAC7725). The DAC7724 and DAC7725 can operate from a single +15V supply, or from +15V and 15V supplies.
