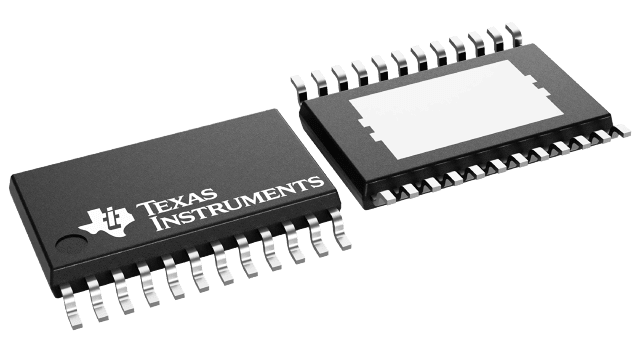

DAC7750IPWP Texas Instruments - Yeehing Electronics

12-bit, single-channel, programmable current output DAC for 4-20mA current loop applications

Pricing (USD)

Quantity	Unit Price
1 — 99	7.176
100 — 249	5.85
250 — 999	4.598
1,000 +	2.73

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital to Analog Converters - DAC
RoHS	Y
Series	DAC7750
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	HTSSOP-24
Packaging	Reel
Features	Current Output, Low Power
Power Consumption	135 mW
Brand	Texas Instruments
Analog Supply Voltage	10 V to 36 V
Digital Supply Voltage	2.7 V to 5.5 V
DNL - Differential Nonlinearity	+/- 1 LSB
Gain Error	0.07 % FSR
Moisture Sensitive	Yes
Product Type	DACs - Digital to Analog Converters
Factory Pack Quantity	2000
Subcategory	Data Converter ICs
Unit Weight	0.005531 oz

For more information, please refer to datasheet

Documents

DAC7750IPWP Datasheet

More Information

The DAC7750 and DAC8750 (DACx750) are low-cost, precision, fully-integrated, 12-bit and 16-bit digital-to-analog converters (DACs) designed to meet the requirements of industrial process-control applications. These devices can be programmed as a current output with ranges of 4 mA to 20 mA, 0 mA to 20 mA, or 0 mA to 24 mA. The DACx750 include reliability features such as CRC error checking on the SPI frame, a watchdog timer, an open circuit, compliance voltage, and thermal alarm. In addition, the output current can be monitored by accessing an internal precision resistor.
