Texas Instruments
DAC7750IPWPR
DAC7750IPWPR
Regular price
$2.27 USD
Regular price
Sale price
$2.27 USD
Unit price
per
Couldn't load pickup availability

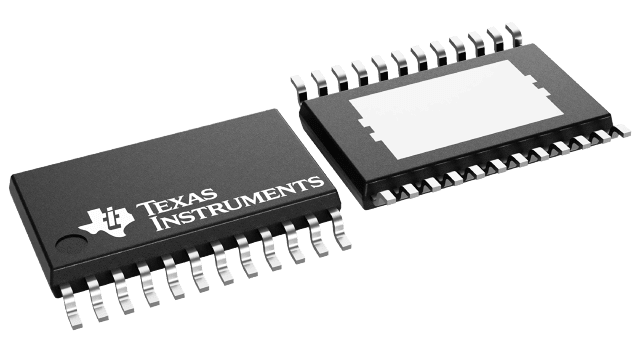

DAC7750IPWPR Texas Instruments - Yeehing Electronics
12-bit, single-channel, programmable current output DAC for 4-20mA current loop applications
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.98 |
| 100 — 249 | 4.875 |
| 250 — 999 | 3.832 |
| 1,000 + | 2.27 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital to Analog Converters - DAC |
| RoHS | Y |
| Series | DAC7750 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-24 |
| Packaging | Reel |
| Features | Current Output, Low Power |
| Power Consumption | 135 mW |
| Brand | Texas Instruments |
| Analog Supply Voltage | 10 V to 36 V |
| Digital Supply Voltage | 2.7 V to 5.5 V |
| DNL - Differential Nonlinearity | +/- 1 LSB |
| Gain Error | 0.07 % FSR |
| Moisture Sensitive | Yes |
| Product Type | DACs - Digital to Analog Converters |
| Factory Pack Quantity | 2000 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.005531 oz |
For more information, please refer to datasheet
Documents
| DAC7750IPWPR Datasheet |
More Information
The DAC7750 and DAC8750 (DACx750) are low-cost, precision, fully-integrated, 12-bit and 16-bit digital-to-analog converters (DACs) designed to meet the requirements of industrial process-control applications. These devices can be programmed as a current output with ranges of 4 mA to 20 mA, 0 mA to 20 mA, or 0 mA to 24 mA. The DACx750 include reliability features such as CRC error checking on the SPI frame, a watchdog timer, an open circuit, compliance voltage, and thermal alarm. In addition, the output current can be monitored by accessing an internal precision resistor.
