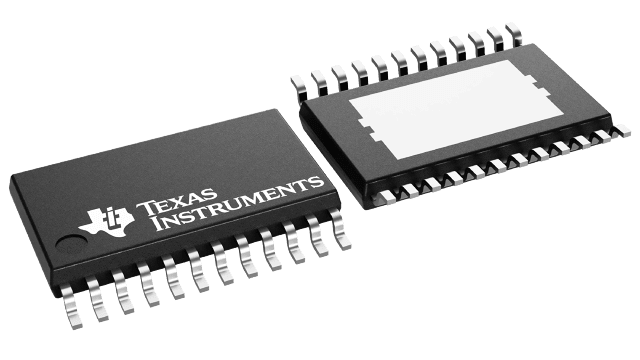

DAC7760IPWP Texas Instruments - Yeehing Electronics
12-bit, single-channel, programmable current/voltage output DAC for 4-20mA current loop applications
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 9.384 |
100 — 249 | 7.65 |
250 — 999 | 6.013 |
1,000 + | 3.57 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
DAC7760IPWP Datasheet |
More Information
The DACx760 are precision, fully integrated, 12-bit and 16-bit digital-to-analog converters (DACs) designed to meet the requirements of industrial process-control applications. These devices are programmable as a current output with a range of 4 mA to 20 mA, 0 mA to 20 mA, or 0 mA to 24 mA; or as a voltage output with a range of 0 V to 5 V, 0 V to 10 V, ±5 V, or ±10 V with a 10% overrange (0 V to 5.5 V, 0 V to 11 V, ±5.5 V, or ±11 V). Both current and voltage outputs can be simultaneously enabled while being controlled by one data register.
