Texas Instruments
DAC7760IRHAR
DAC7760IRHAR
Regular price
$2.97 USD
Regular price
Sale price
$2.97 USD
Unit price
per
Couldn't load pickup availability

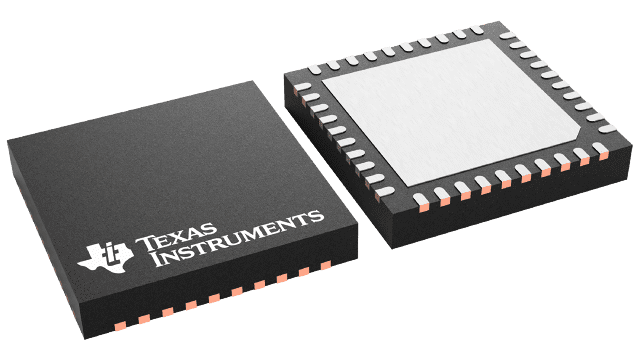

DAC7760IRHAR Texas Instruments - Yeehing Electronics
12-bit, single-channel, programmable current/voltage output DAC for 4-20mA current loop applications
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.82 |
| 100 — 249 | 6.375 |
| 250 — 999 | 5.011 |
| 1,000 + | 2.97 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital to Analog Converters - DAC |
| RoHS | Y |
| Series | DAC7760 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-40 |
| Packaging | Reel |
| Features | Current Output, Low Power |
| Power Consumption | 135 mW |
| Brand | Texas Instruments |
| Analog Supply Voltage | 10 V to 36 V |
| Digital Supply Voltage | 2.7 V to 5.5 V |
| DNL - Differential Nonlinearity | +/- 1 LSB |
| Gain Error | 0.07 % FSR |
| Moisture Sensitive | Yes |
| Product Type | DACs - Digital to Analog Converters |
| Factory Pack Quantity | 2500 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.001915 oz |
For more information, please refer to datasheet
Documents
| DAC7760IRHAR Datasheet |
More Information
The DACx760 are precision, fully integrated, 12-bit and 16-bit digital-to-analog converters (DACs) designed to meet the requirements of industrial process-control applications. These devices are programmable as a current output with a range of 4 mA to 20 mA, 0 mA to 20 mA, or 0 mA to 24 mA; or as a voltage output with a range of 0 V to 5 V, 0 V to 10 V, ±5 V, or ±10 V with a 10% overrange (0 V to 5.5 V, 0 V to 11 V, ±5.5 V, or ±11 V). Both current and voltage outputs can be simultaneously enabled while being controlled by one data register.
