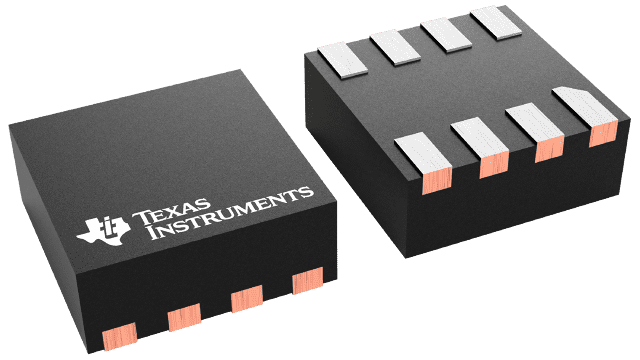

DAC80501MDQFT Texas Instruments - Yeehing Electronics

True 16-bit, 1-ch, SPI/I2C, voltage-output DAC in WSON package with precision internal reference

Pricing (USD)

Quantity	Unit Price
1 — 99	6.072
100 — 249	4.95
250 — 999	3.891
1,000 +	2.31

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

DAC80501MDQFT Datasheet

More Information

The 16-bit DAC80501, 14-bit DAC70501, and 12-bit DAC60501 (DACx0501) digital-to-analog converters (DACs) are highly accurate, low-power devices with voltage-output. The DACx0501 are specified monotonic by design, and offer linearity of < 1 LSB. These devices include a 2.5-V, 5-ppm/˚C internal reference, giving full-scale output voltage ranges of 1.25 V, 2.5 V, or 5 V. The DACx0501 incorporate a power-on-reset circuit that makes sure the DAC output powers up at zero scale or midscale, and remains at that scale until a valid code is written to the device. These devices consume a low current of 1 mA, and include a power-down feature that reduces current consumption to typically 15 µA at 5 V.
