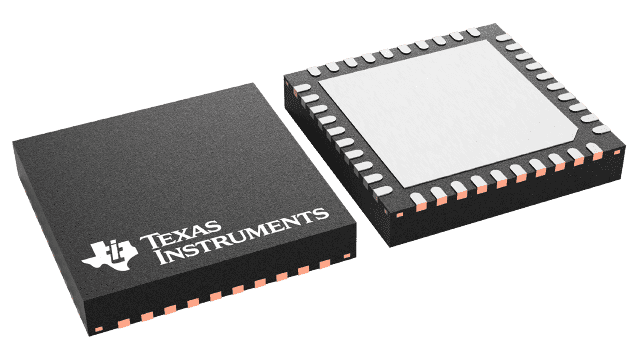

DAC81416RHAT Texas Instruments - Yeehing Electronics

16-channel 16-bit high-voltage output DAC with integrated internal reference

Pricing (USD)

Quantity	Unit Price
1 — 99	53.535
100 — 249	47.586
250 — 999	39.119
1,000 +	24.49

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

DAC81416RHAT Datasheet

More Information

The DAC81416, DAC71416, and DAC61416 (DACx1416) are a pin-compatible family of 16‑channel, buffered, high-voltage output digital-to-analog converters (DACs) with 16‑bit, 14‑bit, and 12‑bit resolution. The DACx1416 include a low-drift, 2.5‑V internal reference, eliminating the need for an external precision reference in most applications. These devices are specified monotonic and provide high linearity of ±1 LSB INL.
