DAC8163SDSCR


YeeHing #: Y004-DAC8163SDSCR
Inventory: 5400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

DAC8163SDSCR Texas Instruments - Yeehing Electronics

14-Bit, Dual, Low Power, Ultra-low Glitch, Buffered Voltage Output DAC with 2.5V, 4ppm/°C Reference

Pricing (USD)

Quantity Unit Price
1 — 99 6.858
100 — 249 5.591
250 — 999 4.394
1,000 + 2.61

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Minimum Operating Temperature -40
Maximum Operating Temperature 125
Factory Pack Quantity 3,000

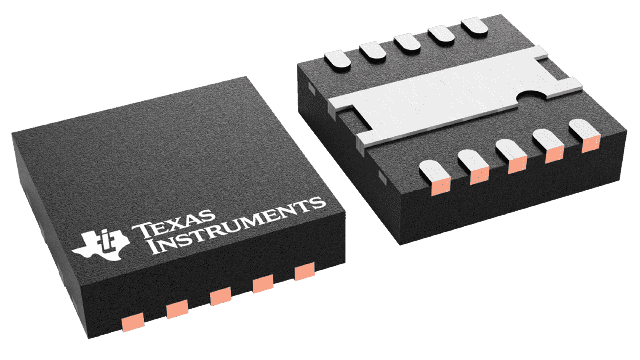

Package | Pins WSON (DSC) | 10

For more information, please refer to datasheet

Documents

DAC8163SDSCR Datasheet

More Information

The DAC756x, DAC816x, and DAC856x devices are low-power, voltage-output, dual-channel, 16-, 14-, and 12-bit digital-to-analog converters (DACs), respectively. These devices include a 2.5-V, 4-ppm/°C internal reference, giving a full-scale output voltage range of 2.5 V or 5 V. The internal reference has an initial accuracy of ±5 mV and can source or sink up to 20 mA at the VREFIN/VREFOUT pin.
