DAC8228SRTQR Texas Instruments - Yeehing Electronics

Octal, Low Power, 14-Bit, +/-16.5V Output Parallel Input Digital-To-Analog Converter

Pricing (USD)

Quantity	Unit Price
1 — 99	24.998
100 — 249	21.836
250 — 999	16.836
1,000 +	10.54

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	-40
Maximum Operating Temperature	105
Factory Pack Quantity	2,000

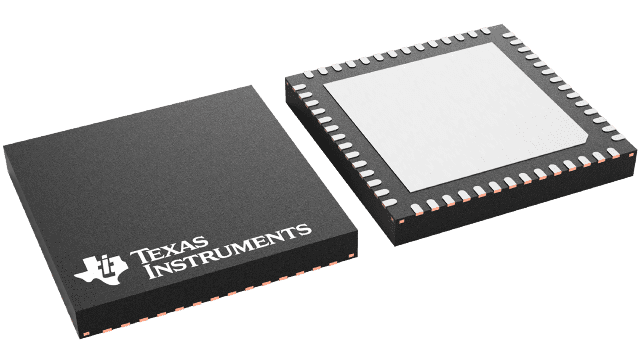

Package | Pins	VQFN (RTQ) | 56

For more information, please refer to datasheet

Documents

DAC8228SRTQR Datasheet

More Information

The DAC8228 is a low-power, octal, 14-bit digital-to-analog converter (DAC). With a 5V reference, the output can either be a bipolar ±15V voltage when operating from a dual ±15.5V (or higher) power supply, or a unipolar 0V to +30V voltage when operating from a +30.5V power supply. With a 5.5V reference, the output can be ±16.5V for a dual ±17V (or higher) power supply, or a unipolar 0V to +33V voltage when operating from a +33.5V (or higher) power supply. This DAC provides low-power operation, good linearity, and low glitch over the specified temperature range of –40°C to +105°C. This device is trimmed in manufacturing and has very low zero and full-scale error. In addition, user calibration can be performed to achieve ±1 LSB bipolar zero/full-scale error for a bipolar supply, or ±1 LSB zero-code/full-scale error for a unipolar supply over the entire signal chain. The output range can be offset by using the DAC Offset Register.
