Texas Instruments
DAC8562SDSCT
DAC8562SDSCT
Regular price
$3.42 USD
Regular price
Sale price
$3.42 USD
Unit price
per
Couldn't load pickup availability

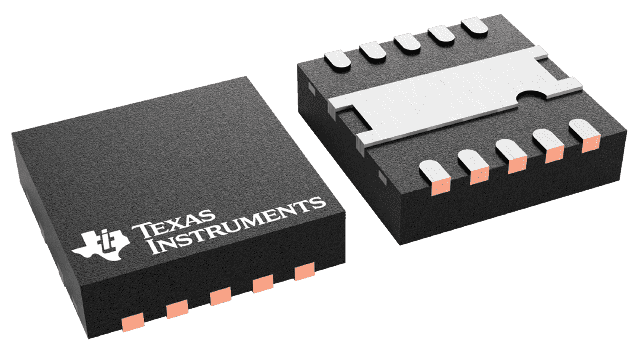

DAC8562SDSCT Texas Instruments - Yeehing Electronics
16-bit, dual-channel, low-power, ultra-low glitch, voltage output DAC with 2.5V, 4ppm/°C reference
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.977 |
| 100 — 249 | 7.319 |
| 250 — 999 | 5.752 |
| 1,000 + | 3.42 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital to Analog Converters - DAC |
| RoHS | Y |
| Series | DAC8562 |
| Resolution | 16 bit |
| Number of Channels | 2 Channel |
| Settling Time | 10 us |
| Interface Type | Serial, 3-Wire |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.7 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-10 |
| Packaging | Reel |
| Features | Low Power, Small Size |
| Number of Converters | 2 Converter |
| Power Consumption | 0.5 mW |
| Brand | Texas Instruments |
| Gain Error | 0.15 % FSR |
| Moisture Sensitive | Yes |
| Product Type | DACs - Digital to Analog Converters |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.000646 oz |
For more information, please refer to datasheet
Documents
| DAC8562SDSCT Datasheet |
More Information
The DAC756x, DAC816x, and DAC856x devices are low-power, voltage-output, dual-channel, 16-, 14-, and 12-bit digital-to-analog converters (DACs), respectively. These devices include a 2.5-V, 4-ppm/°C internal reference, giving a full-scale output voltage range of 2.5 V or 5 V. The internal reference has an initial accuracy of ±5 mV and can source or sink up to 20 mA at the VREFIN/VREFOUT pin.
