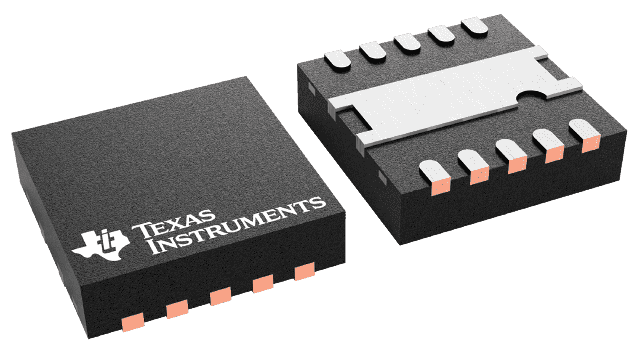

DAC8562TDSCR Texas Instruments - Yeehing Electronics

DAC8562T Dual,16-Bit,Low Power,Voltage-Output DACs with 2.5-V,4ppm/C, Internal Ref, and 5V TTL I/O

Pricing (USD)

Quantity	Unit Price
1 — 99	7.481
100 — 249	6.099
250 — 999	4.794
1,000 +	2.85

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

DAC8562TDSCR Datasheet

More Information

The DAC856xT, DAC816xT, and DAC756xT devices are low-power, voltage-output, dual-channel, 16-, 14-, and 12-bit digital-to-analog converters (DACs), respectively. These devices include a 2.5-V, 4-ppm/°C internal reference, giving a full-scale output voltage range of 2.5 V or 5 V. The internal reference has an initial accuracy of ±5 mV and can source or sink up to 20 mA at the VREFIN/VREFOUT pin.
