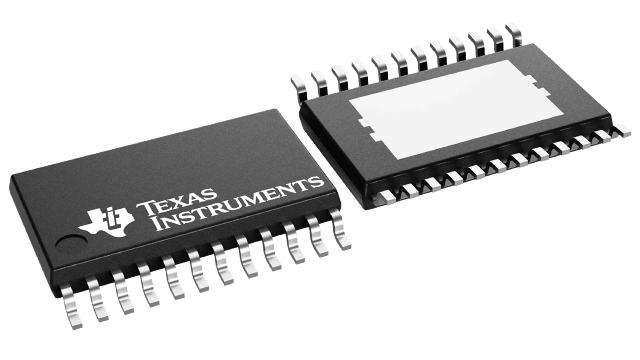

DAC8750IPWPR


YeeHing #: Y004-DAC8750IPWPR
Inventory: 5000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

DAC8750IPWPR Texas Instruments - Yeehing Electronics

16-Bit Single-Channel Programmable Current Output DAC for 4-20mA Current-Loop Applications

Pricing (USD)

Quantity Unit Price
1 — 99 9.145
100 — 249 7.455
250 — 999 5.86
1,000 + 5.83

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Digital to Analog Converters - DAC
RoHS Y
Series DAC8750
Resolution 16 bit
Number of Channels 1 Channel
Settling Time 25 us
Interface Type Serial, SPI
Reference Type External, Internal
Supply Voltage - Max 36 V
Supply Voltage - Min 10 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Mounting Style SMD/SMT
Package / Case HTSSOP-24
Packaging Reel
Features Current Output, Low Power
Number of Converters 1 Converter
Output Type Current
Power Consumption 135 mW
Type Programmable
Architecture Resistor-String
Brand Texas Instruments
Shutdown No Shutdown
Analog Supply Voltage 10 V to 36 V
Digital Supply Voltage 2.7 V to 5.5 V
DNL - Differential Nonlinearity +/- 1 LSB
Gain Error 0.07 % FSR
Moisture Sensitive Yes
Operating Supply Current 3 mA
Pd - Power Dissipation 115 mW
Product Type DACs - Digital to Analog Converters
Reference Voltage 5 V
Factory Pack Quantity 2000
Subcategory Data Converter ICs
Unit Weight 0.006081 oz

For more information, please refer to datasheet

Documents

DAC8750IPWPR Datasheet

More Information

The DAC7750 and DAC8750 (DACx750) are low-cost, precision, fully-integrated, 12-bit and 16-bit digital-to-analog converters (DACs) designed to meet the requirements of industrial process-control applications. These devices can be programmed as a current output with ranges of 4 mA to 20 mA, 0 mA to 20 mA, or 0 mA to 24 mA. The DACx750 include reliability features such as CRC error checking on the SPI frame, a watchdog timer, an open circuit, compliance voltage, and thermal alarm. In addition, the output current can be monitored by accessing an internal precision resistor.
