DAC8750IRHAR Texas Instruments - Yeehing Electronics

16-Bit Single-Channel Programmable Current Output DAC for 4-20mA Current-Loop Applications

Pricing (USD)

Quantity	Unit Price
1 — 99	9.145
100 — 249	7.455
250 — 999	5.86
1,000 +	16.46

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	-40
Maximum Operating Temperature	125
Factory Pack Quantity	2,500

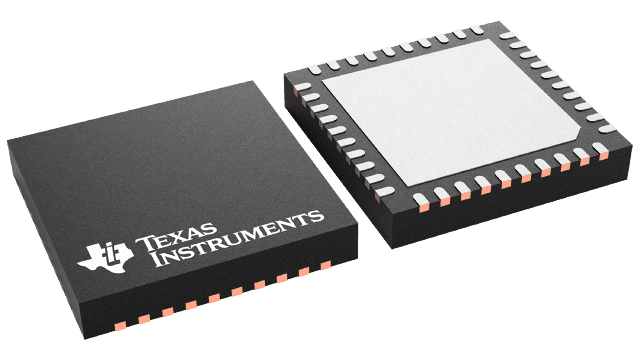

Package | Pins	VQFN (RHA) | 40

For more information, please refer to datasheet

Documents

DAC8750IRHAR Datasheet

More Information

The DAC7750 and DAC8750 (DACx750) are low-cost, precision, fully-integrated, 12-bit and 16-bit digital-to-analog converters (DACs) designed to meet the requirements of industrial process-control applications. These devices can be programmed as a current output with ranges of 4 mA to 20 mA, 0 mA to 20 mA, or 0 mA to 24 mA. The DACx750 include reliability features such as CRC error checking on the SPI frame, a watchdog timer, an open circuit, compliance voltage, and thermal alarm. In addition, the output current can be monitored by accessing an internal precision resistor.
