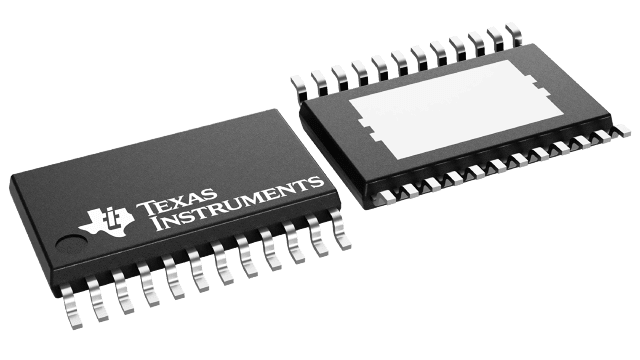

DAC8760IPWP


YeeHing #: Y004-DAC8760IPWP
Inventory: 2400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

DAC8760IPWP Texas Instruments - Yeehing Electronics

16-Bit Single-Channel Programmable Current/Voltage Output DAC for 4-20mA current loop applications

Pricing (USD)

Quantity Unit Price
1 — 99 13.027
100 — 249 10.62
250 — 999 8.347
1,000 + 4.96

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Digital to Analog Converters - DAC
RoHS Y
Series DAC8760
Resolution 16 bit
Number of Channels 1 Channel
Settling Time 25 us
Interface Type Serial, SPI
Reference Type External, Internal
Supply Voltage - Max 36 V, 5.5 V
Supply Voltage - Min 10 V, 2.7 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Mounting Style SMD/SMT
Package / Case HTSSOP-24
Packaging Reel
Features Current Output, Low Power
Number of Converters 1 Converter
Output Type Current, Voltage
Power Consumption 135 mW
Architecture Resistor-String
Brand Texas Instruments
Analog Supply Voltage 10 V to 36 V
Development Kit DAC8760EVM
Digital Supply Voltage 2.7 V to 5.5 V
DNL - Differential Nonlinearity +/- 1 LSB
Gain Error 0.07 % FSR
Moisture Sensitive Yes
Pd - Power Dissipation 170 mW
Product Type DACs - Digital to Analog Converters
Factory Pack Quantity 2000
Subcategory Data Converter ICs
Unit Weight 0.006081 oz

For more information, please refer to datasheet

Documents

DAC8760IPWP Datasheet

More Information

The DACx760 are precision, fully integrated, 12-bit and 16-bit digital-to-analog converters (DACs) designed to meet the requirements of industrial process-control applications. These devices are programmable as a current output with a range of 4 mA to 20 mA, 0 mA to 20 mA, or 0 mA to 24 mA; or as a voltage output with a range of 0 V to 5 V, 0 V to 10 V, ±5 V, or ±10 V with a 10% overrange (0 V to 5.5 V, 0 V to 11 V, ±5.5 V, or ±11 V). Both current and voltage outputs can be simultaneously enabled while being controlled by one data register.
