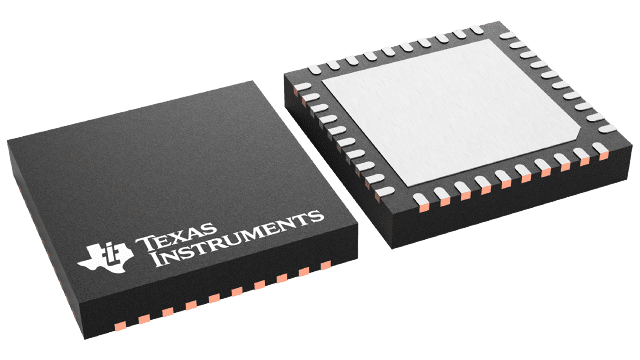

DAC8760IRHAR Texas Instruments - Yeehing Electronics

16-Bit Single-Channel Programmable Current/Voltage Output DAC for 4-20mA current loop applications

Pricing (USD)

Quantity	Unit Price
1 — 99	None
100 — 249	None
250 — 999	None
1,000 +	None

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital to Analog Converters - DAC
RoHS	Y
Series	DAC8760
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	VQFN-40
Packaging	Reel
Features	Current Output, Low Power
Power Consumption	135 mW
Brand	Texas Instruments
Analog Supply Voltage	10 V to 36 V
Digital Supply Voltage	2.7 V to 5.5 V
DNL - Differential Nonlinearity	+/- 1 LSB
Gain Error	0.07 % FSR
Moisture Sensitive	Yes
Product Type	DACs - Digital to Analog Converters
Factory Pack Quantity	2500
Subcategory	Data Converter ICs
Unit Weight	0.001915 oz

For more information, please refer to datasheet

Documents

DAC8760IRHAR Datasheet

More Information

The DACx760 are precision, fully integrated, 12-bit and 16-bit digital-to-analog converters (DACs) designed to meet the requirements of industrial process-control applications. These devices are programmable as a current output with a range of 4 mA to 20 mA, 0 mA to 20 mA, or 0 mA to 24 mA; or as a voltage output with a range of 0 V to 5 V, 0 V to 10 V, ±5 V, or ±10 V with a 10% overrange (0 V to 5.5 V, 0 V to 11 V, ±5.5 V, or ±11 V). Both current and voltage outputs can be simultaneously enabled while being controlled by one data register.
