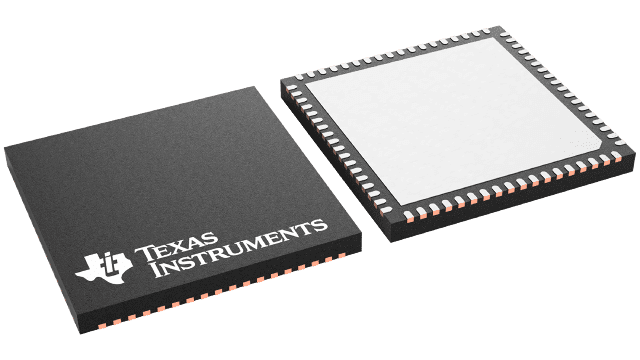

DAC8775IRWFT Texas Instruments - Yeehing Electronics
16-Bit Quad-Channel Programmable Current-Output and Voltage-Output Digital-to-Analog Converter (DAC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 31.341 |
| 100 — 249 | 27.376 |
| 250 — 999 | 21.108 |
| 1,000 + | 13.22 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital to Analog Converters - DAC |
| RoHS | Y |
| Series | DAC8775 |
| Resolution | 16 bit |
| Sampling Rate | - |
| Number of Channels | 4 Channel |
| Settling Time | 10 us |
| Interface Type | SPI |
| Reference Type | External, Internal |
| Supply Voltage - Max | 36 V |
| Supply Voltage - Min | 12 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-72 |
| Packaging | Reel |
| Features | Integrated Buck Boost Converter, Low Power |
| Number of Converters | 1 Converter |
| Output Type | Buffered |
| Power Consumption | 530 mW |
| Type | Precision |
| Architecture | Resistor-String |
| Brand | Texas Instruments |
| Shutdown | No Shutdown |
| Development Kit | DAC8775EVM |
| DNL - Differential Nonlinearity | 1 LSB |
| Gain Error | 0.05 % FSR |
| INL - Integral Nonlinearity | 16 LSB |
| Moisture Sensitive | Yes |
| Pd - Power Dissipation | 1.1 W |
| Product Type | DACs - Digital to Analog Converters |
| Reference Voltage | 5 V |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.010388 oz |
For more information, please refer to datasheet
Documents
| DAC8775IRWFT Datasheet |
More Information
The DAC8775 is a quad-channel precision, fully integrated, 16-bit, digital-to-analog converter (DAC) with adaptive power management, and is designed to meet the requirements of industrial control applications. The adaptive power management circuit, when enabled, minimizes the power dissipation of the chip. When programmed as a current output, the supply voltage on the current output driver is regulated between 4.5 V and 32 V based on continuous feedback of voltage on the current output pin via an integrated buck/boost converter. When programmed as a voltage output, this circuit generates a programmable supply voltage for the voltage output stage (±15 V). DAC8775 also contains an LDO to generate the digital supply (5 V) from a single power supply pin.
