Description

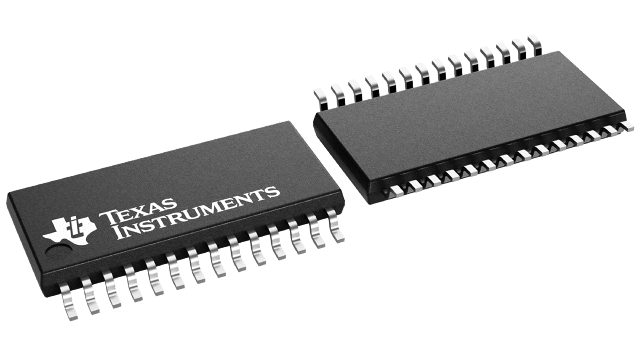

DAC908E/2K5 Texas Instruments - Yeehing Electronics
8-Bit 165-MSPS Digital-to-Analog Converter (DAC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.967 |
| 100 — 249 | 4.865 |
| 250 — 999 | 3.823 |
| 1,000 + | 2.27 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | -40 |
| Maximum Operating Temperature | 85 |
| Factory Pack Quantity | 2,500 |
| Package | Pins | TSSOP (PW) | 28 |
For more information, please refer to datasheet
Documents
| DAC908E/2K5 Datasheet |
More Information
The DAC908 is a high-speed, Digital-to-Analog Converter (DAC) offering an 8-bit resolution option within the SpeedPlus family of high-performance converters. Featuring pin compatibility among family members, the DAC900, DAC902, and DAC904 provide a component selection option to an 10-, 12-, and 14-bit resolution, respectively. All models within this family of DACs support update rates in excess of 165MSPS with excellent dynamic performance, and are especially suited to fulfill the demands of a variety of applications.
