Description

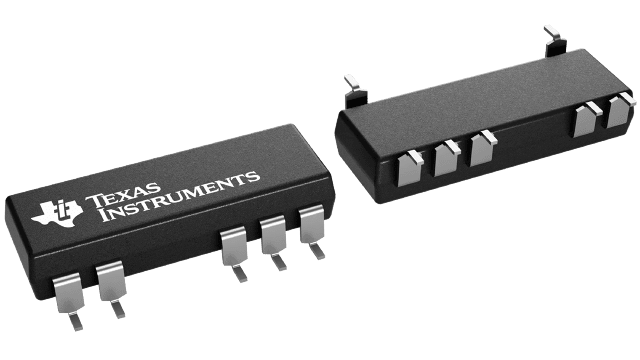

DCP010515BP-U Texas Instruments - Yeehing Electronics
Miniature, 1W Isolated Unregulated DC/DC Converters
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 13.904 |
| 100 — 249 | 12.145 |
| 250 — 999 | 9.364 |
| 1,000 + | 5.86 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Isolated DC/DC Converters |
| RoHS | Y |
| Number of Outputs | 1 Output |
| Output Power | 1 W |
| Input Voltage | 4.5 V to 5.5 V |
| Output Voltage-Channel 1 | 15.75 V |
| Output Current-Channel 1 | 67 mA |
| Isolation Voltage | 1 kV |
| Mounting Style | SMD/SMT |
| Product | Isolated |
| Series | DCP010515B |
| Operating Temperature Range | - 40 C to + 100 C |
| Packaging | Tube |
| Package / Case Size | SOP-7 |
| Brand | Texas Instruments |
| Maximum Operating Temperature | + 100 C |
| Minimum Operating Temperature | - 40 C |
| Moisture Sensitive | Yes |
| Product Type | Isolated DC-DC Converters |
| Factory Pack Quantity | 25 |
| Subcategory | DC-DC Converter |
| Unit Weight | 0.052181 oz |
For more information, please refer to datasheet
Documents
| DCP010515BP-U Datasheet |
More Information
The DCP01B series is a family of 1-W, isolated, unregulated DC/DC converter modules. Requiring a minimum of external components and including on-chip device protection, the DCP01B series of devices provide extra features such as output disable and synchronization of switching frequencies.
