Texas Instruments
DCP020505P
DCP020505P
Regular price
$5.14 USD
Regular price
Sale price
$5.14 USD
Unit price
per
Couldn't load pickup availability

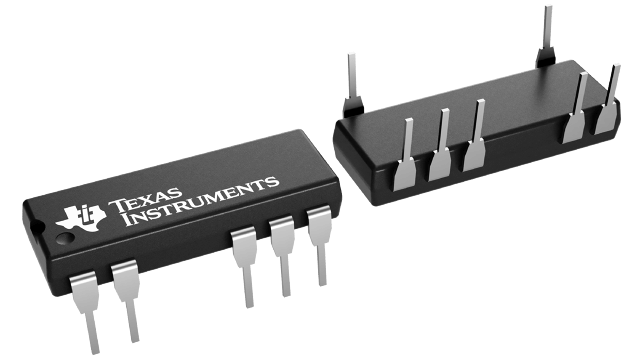

DCP020505P Texas Instruments - Yeehing Electronics
Miniature, 2W Isolated Unregulated DC/DC Converters
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 12.201 |
| 100 — 249 | 10.658 |
| 250 — 999 | 8.217 |
| 1,000 + | 5.14 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Isolated DC/DC Converters |
| RoHS | Y |
| Number of Outputs | 1 Output |
| Output Power | 2 W |
| Input Voltage | 4.5 V to 5.5 V |
| Output Voltage-Channel 1 | 5.25 V |
| Output Current-Channel 1 | 400 mA |
| Isolation Voltage | 1 kV |
| Mounting Style | Through Hole |
| Product | Isolated |
| Series | DCP020505 |
| Operating Temperature Range | - 40 C to + 85 C |
| Packaging | Tube |
| Package / Case Size | PDIP-7 |
| Brand | Texas Instruments |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
| Product Type | Isolated DC-DC Converters |
| Factory Pack Quantity | 25 |
| Subcategory | DC-DC Converter |
| Unit Weight | 0.040565 oz |
For more information, please refer to datasheet
Documents
| DCP020505P Datasheet |
More Information
The DCP02 series is a family of 2-W, isolated, unregulated DC/DC converter modules. Requiring a minimum of external components and including on-chip device protection, the DCP02 series of devices provide extra features such as output disable and synchronization of switching frequencies.
