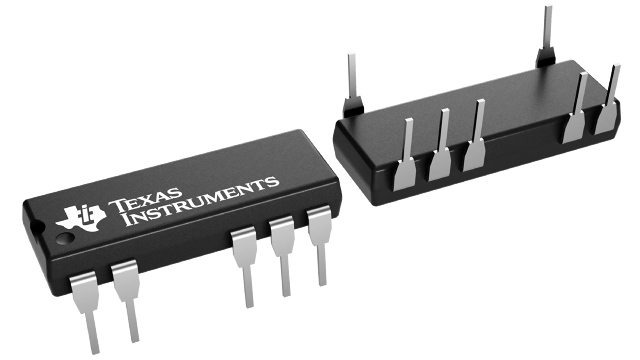

DCP022405P Texas Instruments - Yeehing Electronics

Miniature, 2W Isolated Unregulated DC/DC Converters

Pricing (USD)

Quantity	Unit Price
1 — 99	16.534
100 — 249	14.442
250 — 999	11.135
1,000 +	6.97

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Isolated DC/DC Converters
RoHS	Y
Number of Outputs	1 Output
Output Power	2 W
Input Voltage	21.6 V to 26.4 V
Output Voltage-Channel 1	5.35 V
Output Current-Channel 1	400 mA
Isolation Voltage	1 kV
Mounting Style	Through Hole
Product	Isolated
Series	DCP022405
Operating Temperature Range	- 40 C to + 85 C
Packaging	Tube
Package / Case Size	PDIP-7
Brand	Texas Instruments
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Product Type	Isolated DC-DC Converters
Factory Pack Quantity	25
Subcategory	DC-DC Converter
Unit Weight	0.007055 oz

For more information, please refer to datasheet

Documents

DCP022405P Datasheet

More Information

The DCP02 series is a family of 2-W, isolated, unregulated DC/DC converter modules. Requiring a minimum of external components and including on-chip device protection, the DCP02 series of devices provide extra features such as output disable and synchronization of switching frequencies.
