Texas Instruments
DCP022415DU
DCP022415DU
Regular price
$8.40 USD
Regular price
Sale price
$8.40 USD
Unit price
per
Couldn't load pickup availability

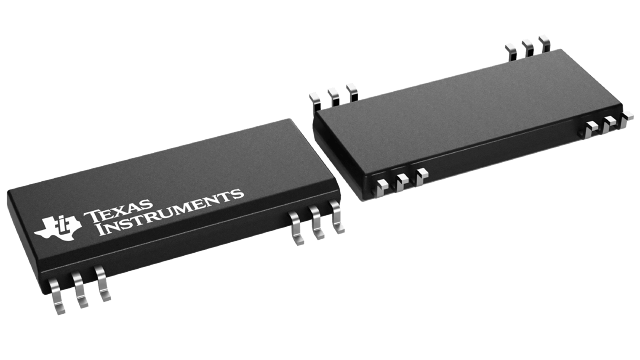

DCP022415DU Texas Instruments - Yeehing Electronics
Miniature, 2W Isolated Unregulated DC/DC Converters
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 19.92 |
| 100 — 249 | 17.4 |
| 250 — 999 | 13.416 |
| 1,000 + | 8.40 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Isolated DC/DC Converters |
| RoHS | Y |
| Number of Outputs | 2 Output |
| Output Power | 2 W |
| Input Voltage | 21.6 V to 26.4 V |
| Output Voltage-Channel 1 | 15.75 V |
| Output Current-Channel 1 | 66 mA |
| Output Voltage-Channel 2 | - 14.25 V to - 15.75 V |
| Output Current-Channel 2 | 60 mA |
| Isolation Voltage | 1 kV |
| Mounting Style | SMD/SMT |
| Product | Isolated |
| Series | DCP022415D |
| Operating Temperature Range | - 40 C to + 85 C |
| Packaging | Tube |
| Package / Case Size | SOP-12 |
| Brand | Texas Instruments |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
| Moisture Sensitive | Yes |
| Product Type | Isolated DC-DC Converters |
| Factory Pack Quantity | 28 |
| Subcategory | DC-DC Converter |
| Unit Weight | 0.025817 oz |
For more information, please refer to datasheet
Documents
| DCP022415DU Datasheet |
More Information
The DCP02 series is a family of 2-W, isolated, unregulated DC/DC converter modules. Requiring a minimum of external components and including on-chip device protection, the DCP02 series of devices provide extra features such as output disable and synchronization of switching frequencies.
