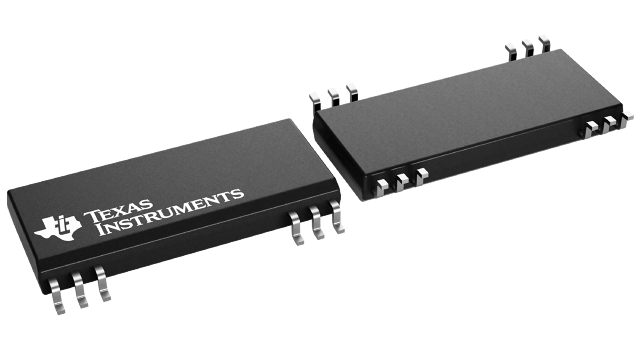

DCR012405U Texas Instruments - Yeehing Electronics
Miniature, 1W Isolated Regulated DC/DC Converters
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 20.999 |
| 100 — 249 | 18.343 |
| 250 — 999 | 14.143 |
| 1,000 + | 8.86 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Isolated DC/DC Converters |
| RoHS | Y |
| Number of Outputs | 1 Output |
| Output Power | 1 W |
| Input Voltage | 21.6 V to 26.4 V |
| Output Voltage-Channel 1 | 5 V |
| Output Current-Channel 1 | 200 mA |
| Isolation Voltage | 1 kV |
| Mounting Style | SMD/SMT |
| Product | Isolated |
| Series | DCR012405 |
| Operating Temperature Range | - 40 C to + 85 C |
| Packaging | Tube |
| Package / Case Size | SO-28 |
| Brand | Texas Instruments |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
| Moisture Sensitive | Yes |
| Product Type | Isolated DC-DC Converters |
| Factory Pack Quantity | 28 |
| Subcategory | DC-DC Converter |
| Unit Weight | 0.018501 oz |
For more information, please refer to datasheet
Documents
| DCR012405U Datasheet |
More Information
The DCR01 family is a series of high-efficiency, input-isolated, output-regulated DC/DC converters. In addition to 1-W nominal, galvanically-isolated output power capability, this range of DC/DC converters offer very low output noise, thermal protection, and high accuracy.
