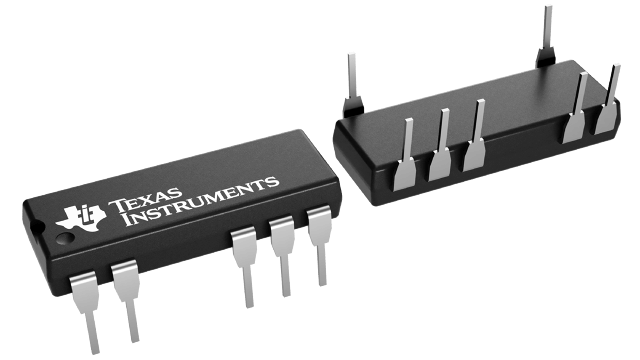

DCV010505P Texas Instruments - Yeehing Electronics
Miniature, 1W, 1500Vrms Isolated Unregulated DC/DC Converters
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 13.645 |
100 — 249 | 11.919 |
250 — 999 | 9.19 |
1,000 + | 5.75 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Isolated DC/DC Converters |
RoHS | Y |
Number of Outputs | 1 Output |
Output Power | 1 W |
Input Voltage | 4.5 V to 5.5 V |
Output Voltage-Channel 1 | 4.75 V to 5.25 V |
Output Current-Channel 1 | 200 mA |
Isolation Voltage | 1.5 kV |
Mounting Style | SMD/SMT |
Product | Isolated |
Series | DCV010505 |
Operating Temperature Range | - 40 C to + 85 C |
Packaging | Tube |
Package / Case Size | PDIP-7 |
Brand | Texas Instruments |
Maximum Operating Temperature | + 85 C |
Minimum Operating Temperature | - 40 C |
Product Type | Isolated DC-DC Converters |
Factory Pack Quantity | 25 |
Subcategory | DC-DC Converter |
Unit Weight | 0.039472 oz |
For more information, please refer to datasheet
Documents
DCV010505P Datasheet |
More Information
The DCV01 series is a family of 1-W, 1500-Vrms isolated, unregulated DC/DC converter modules. Requiring a minimum of external components and including on-chip device protection, the DCV01 series of devices provide extra features such as output disable and synchronization of switching frequencies.
