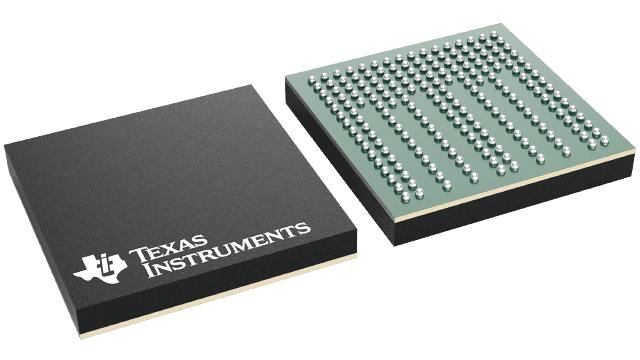

DDC1128ZKLT Texas Instruments - Yeehing Electronics
128-Channel, Current-Input Analog-to-Digital Converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 224.553 |
| 100 — 249 | 203.259 |
| 250 — 999 | 197.452 |
| 1,000 + | 154.86 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | DDC1128 |
| Mounting Style | SMD/SMT |
| Package / Case | NFBGA-192 |
| Resolution | 20 bit |
| Number of Channels | 128 Channel |
| Sampling Rate | 6.25 kS/s |
| Input Type | Single-Ended |
| Interface Type | SPI |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Analog Supply Voltage | 4.9 V to 5.1 V |
| Digital Supply Voltage | 2.7 V to 3.6 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Packaging | Reel |
| Features | Computed Tomography (CT) |
| Number of Converters | 1 Converter |
| Output Type | Digital |
| Type | Current Input ADC |
| Brand | Texas Instruments |
| Shutdown | No Shutdown |
| INL - Integral Nonlinearity | 0.05 % FSR |
| Moisture Sensitive | Yes |
| Number of ADC Inputs | 128 Input |
| Product Type | ADCs - Analog to Digital Converters |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.008529 oz |
For more information, please refer to datasheet
Documents
| DDC1128ZKLT Datasheet |
More Information
The DDC1128 is a 20-bit, 128-channel, current-input analog-to-digital (A/D) converter. It combines both current-to-voltage and A/D conversion so that 128 separate low-level current output devices, such as photodiodes, can be directly connected to its inputs and digitized.
