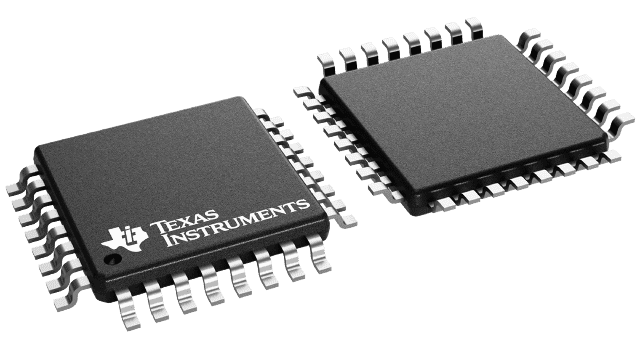

DDC112YK/250 Texas Instruments - Yeehing Electronics
Dual Current Input 20-Bit Analog-To-Digital Converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 21.772 |
| 100 — 249 | 19.353 |
| 250 — 999 | 15.909 |
| 1,000 + | 9.96 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | DDC112 |
| Mounting Style | SMD/SMT |
| Package / Case | TQFP-32 |
| Resolution | 20 bit |
| Number of Channels | 2 Channel |
| Sampling Rate | 3 kS/s |
| Input Type | Single-Ended |
| Interface Type | SPI |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 4.75 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Computed Tomography (CT) |
| Height | 1 mm |
| Length | 7 mm |
| Number of Converters | 1 Converter |
| Width | 7 mm |
| Brand | Texas Instruments |
| Development Kit | DDC11XEVM-PDK |
| Moisture Sensitive | Yes |
| Number of ADC Inputs | 2 Input |
| Operating Supply Voltage | 5 V |
| Pd - Power Dissipation | 130 mW |
| Product Type | ADCs - Analog to Digital Converters |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.002568 oz |
For more information, please refer to datasheet
Documents
| DDC112YK/250 Datasheet |
More Information
The DDC112 is a dual input, wide dynamic range, charge-digitizing analog-to-digital (A/D) converter with 20-bit resolution. Low-level current output devices, such as photosensors, can be directly connected to its inputs. Charge integration is continuous as each input uses two integrators; while one is being digitized, the other is integrating.
