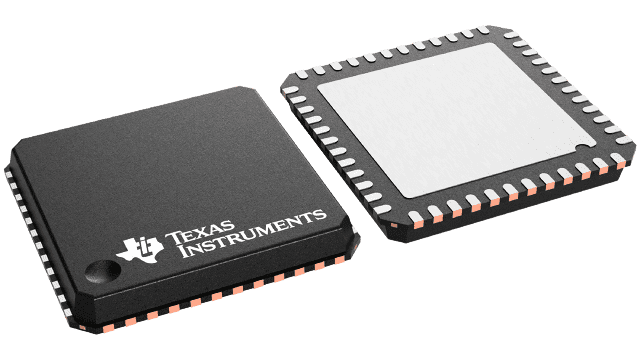

DDC118IRTCT Texas Instruments - Yeehing Electronics
Octal Current-Input 20-Bit Analog-to-Digital Converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 47.491 |
| 100 — 249 | 42.214 |
| 250 — 999 | 34.703 |
| 1,000 + | 21.73 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | DDC118 |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-48 |
| Resolution | 20 bit |
| Number of Channels | 8 Channel |
| Sampling Rate | 3.125 kS/s |
| Input Type | Single-Ended |
| Interface Type | Serial |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 2.7 V to 5.25 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Computed Tomography (CT) |
| Height | 0.9 mm |
| Length | 7 mm |
| Number of Converters | 4 Converter |
| Width | 7 mm |
| Brand | Texas Instruments |
| INL - Integral Nonlinearity | 0.025 % FSR |
| Moisture Sensitive | Yes |
| Number of ADC Inputs | 8 Input |
| Operating Supply Voltage | 5 V |
| Pd - Power Dissipation | 200 mW |
| Product Type | ADCs - Analog to Digital Converters |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.003175 oz |
For more information, please refer to datasheet
Documents
| DDC118IRTCT Datasheet |
More Information
The DDC118 is a 20-bit octal channel, current-input analog-to-digital (A/D) converter. It combines both current-to-voltage and A/D conversion so that eight low-level current output devices, such as photodiodes, can be directly connected to its inputs and digitized.
