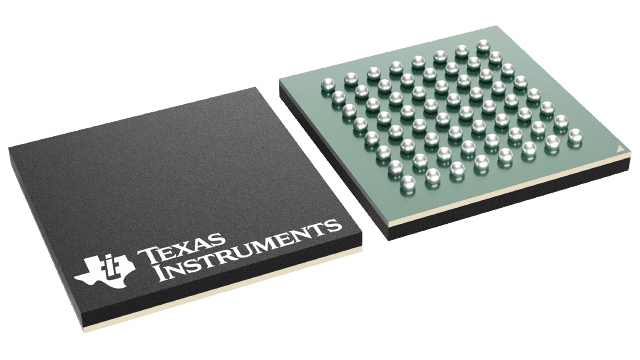

DDC232CZXGT Texas Instruments - Yeehing Electronics
32 Channel Current-Input 20-bit ADC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 92.769 |
| 100 — 249 | 89.979 |
| 250 — 999 | 74.913 |
| 1,000 + | 48.83 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | DDC232 |
| Mounting Style | SMD/SMT |
| Package / Case | NFBGA-64 |
| Resolution | 20 bit |
| Number of Channels | 32 Channel |
| Sampling Rate | 3.125 kS/s |
| Input Type | Single-Ended |
| Interface Type | Serial |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 2.7 V to 3.3 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Packaging | Reel |
| Features | Computed Tomography (CT) |
| Height | 1.01 mm |
| Length | 8 mm |
| Number of Converters | 32 Converter |
| Width | 8 mm |
| Brand | Texas Instruments |
| INL - Integral Nonlinearity | 0.05 % FSR |
| Moisture Sensitive | Yes |
| Number of ADC Inputs | 32 Input |
| Operating Supply Voltage | 5 V |
| Pd - Power Dissipation | 288 mW |
| Product Type | ADCs - Analog to Digital Converters |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
For more information, please refer to datasheet
Documents
| DDC232CZXGT Datasheet |
More Information
The DDC232 is a 20-bit, 32-channel, current-input analog-to-digital (A/D) converter. It combines both current-to-voltage and A/D conversion so that 32 separate low-level current output devices, such as photodiodes, can be directly connected to its inputs and digitized.
