Texas Instruments

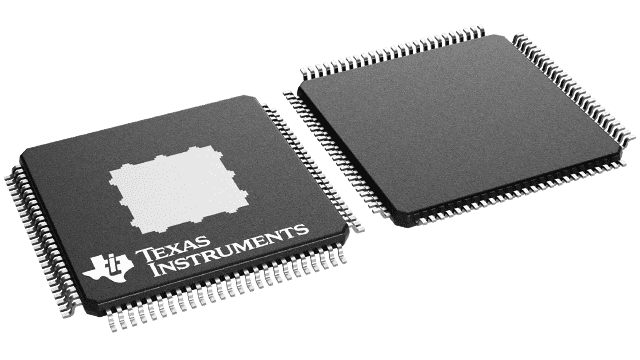

DLPA3005DPFDR
DLPA3005DPFDR
Regular price
$4.11 USD
Regular price
Sale price
$4.11 USD
Unit price
per
Couldn't load pickup availability
DLPA3005DPFDR Texas Instruments - Yeehing Electronics
PMIC/LED Driver for DLP4710 (0.47 1080p DMD)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 11.686 |
| 100 — 249 | 10.208 |
| 250 — 999 | 7.871 |
| 1,000 + | 4.11 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Output Current | 16 mA |
| Series | DLPA3005 |
| Packaging | Reel |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 1000 |
| Subcategory | Driver ICs |
| Tradename | DLP |
| Unit Weight | 0.029256 oz |
For more information, please refer to datasheet
Documents
| DLPA3005DPFDR Datasheet |
More Information
The DLPA3005 is a highly-integrated power management IC optimized for DLP® Pico™ Projector systems. The DLPA3005 supports LED projectors up to 16 A per LED, enabled by an integrated high efficiency buck controller. Additionally, the drivers control the RGB switches, supporting the sequencing of R, G, and B LEDs. The DLPA3005 contains five buck converters, two of which are dedicated for DLPC low voltage supplies. Another dedicated regulating supply generates the three timing-critical DC supplies for the DMD: VBIAS, VRST, and VOFS.
