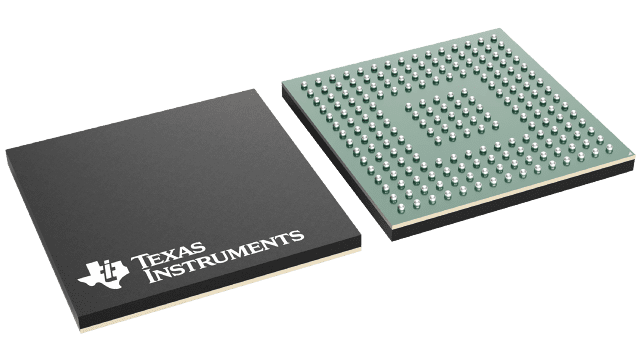

DLPC150ZEZ Texas Instruments - Yeehing Electronics

Digital Controller for the DLP2010NIR DMD

Pricing (USD)

Quantity	Unit Price
1 — 99	31.885
100 — 249	28.342
250 — 999	23.299
1,000 +	14.59

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Display Drivers & Controllers
RoHS	N
Series	DLPC150
Product	Digital Controller
Display Type	WVGA
Operating Supply Voltage	1.8 V to 3.3 V
Minimum Operating Temperature	- 30 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	VFBGA-201
Height	1 mm
Length	13 mm
Operating Frequency	24 MHz
Type	-
Width	13 mm
Brand	Texas Instruments
Development Kit	DLPNIRNANOEVM
Maximum Output Current	-
Moisture Sensitive	Yes
Operating Supply Current	13 mA
Pd - Power Dissipation	-
Product Type	Display Drivers & Controllers
Factory Pack Quantity	1
Subcategory	Driver ICs
Supply Voltage - Max	-
Tradename	DLP
Unit Weight	0.010587 oz

For more information, please refer to datasheet

Documents

DLPC150ZEZ Datasheet

More Information

The DLPC150 controller provides a convenient, reliable, and multi-functional interface between user electronics and the visible DLP2010 or the near-infrared (NIR) DLP2010NIR digital micromirror device (DMD) to steer light and create patterns with high-speed, precision, and efficiency. The DLPC150 controller enables high-speed pattern rates, along with LED control and data formatting for multiple input formats. The DLPC150 controller also provides input and output trigger signals for synchronizing displayed patterns with a camera, sensor, or other peripherals. The DLPC150 controller is part of the 0.2 WVGA chipset that includes the DLP2010 or DLP2010NIR DMD and DLPA2000 or DLPA2005 power management integrated chip (PMIC). The DLPC150 controller enables integration of the DLP® 0.2 WVGA visible or NIR chipset into small form-factor, low-power, and low-cost applications for programmable spectrum and wavelength control, such as 3D scanning or metrology systems, spectrometers, interactive displays, chemical analyzers, medical instruments, skin analysis, material identification, and chemical sensing.
