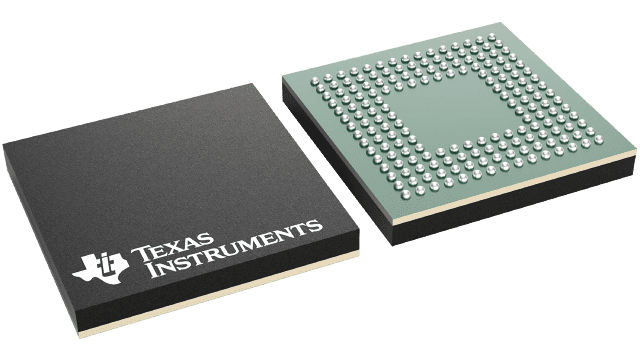

DLPC300ZVB Texas Instruments - Yeehing Electronics
Digital Controller for DLP3000 DMD
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 36.905 |
| 100 — 249 | 32.805 |
| 250 — 999 | 26.967 |
| 1,000 + | 16.88 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Display Drivers & Controllers |
| RoHS | Y |
| Series | DLPC300 |
| Product | Controllers |
| Display Type | 0.3 WVGA DIGITAL Controller |
| Operating Supply Voltage | 0.95 V to 1.05 V |
| Minimum Operating Temperature | - 30 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | nFBGA-176 |
| Packaging | Bulk |
| Operating Frequency | 4 kH |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Display Drivers & Controllers |
| Factory Pack Quantity | 10 |
| Subcategory | Driver ICs |
| Tradename | DLP |
| Unit Weight | 0.010935 oz |
For more information, please refer to datasheet
Documents
| DLPC300ZVB Datasheet |
More Information
The DLPC300 controller provides a convenient, multi-functional interface between user electronics and the DMD, enabling high-speed pattern rates (up to 4-kHz binary), providing LED control, and data formatting for multiple input resolutions. The DLPC300 digital controller, part of the DLP3000 chipset, is required for reliable operation of the DLP3000 DMD. The DLPC300 also outputs a trigger signal for synchronizing displayed patterns with a camera, sensor, or other peripherals.
