DM3725CUS Texas Instruments - Yeehing Electronics

Digital Media Processor

Pricing (USD)

Quantity	Unit Price
1 — 99	27.467
100 — 249	24.415
250 — 999	20.07
1,000 +	12.57

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Signal Processors & Controllers - DSP, DSC
RoHS	Y
Mounting Style	SMD/SMT

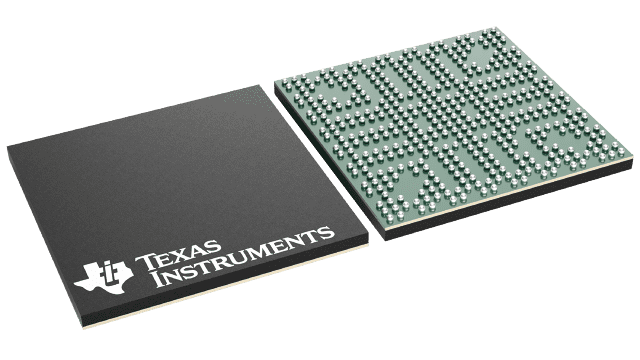

Package / Case	sPBGA-423
Series	DM3725
Product	DSPs
Core	TMS320C64x, ARM Cortex A8
Maximum Clock Frequency	800 MHz, 1 GHz
L1 Cache Instruction Memory	32 kB, 32 kB
L1 Cache Data Memory	80 kB, 32 kB
Data RAM Size	64 kB
Operating Supply Voltage	1.14 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Packaging	Tray
Brand	Texas Instruments
Data ROM Size	32 kB
Interface Type	1-Wire, I2S, Serial, UART, USB
Data Bus Width	32 bit
I/O Voltage	1.8 V, 3 V
Instruction Type	Fixed Point
L2 Cache Instruction / Data Memory	112 kB, 256 kB
MMACS	6400 MMACS
Moisture Sensitive	Yes
Number of Cores	2 Core
Number of Timers/Counters	12 Timer
Processor Series	DaVinci
Product Type	DSP - Digital Signal Processors & Controllers
Factory Pack Quantity	90
Subcategory	Embedded Processors & Controllers
Supply Voltage - Max	1.2 V
Supply Voltage - Min	1.08 V
Watchdog Timers	Watchdog Timer
Unit Weight	0.015834 oz

For more information, please refer to datasheet

Documents

DM3725CUS Datasheet

More Information

The DM37x generation of high-performance, applications processors are based on the enhanced device architecture and are integrated on TI's advanced 45-nm process technology. This architecture is designed to provide best in class ARM and Graphics performance while delivering low power consumption. This balance of performance and power allow the device to support the following example applications:
